Description
| range of product |

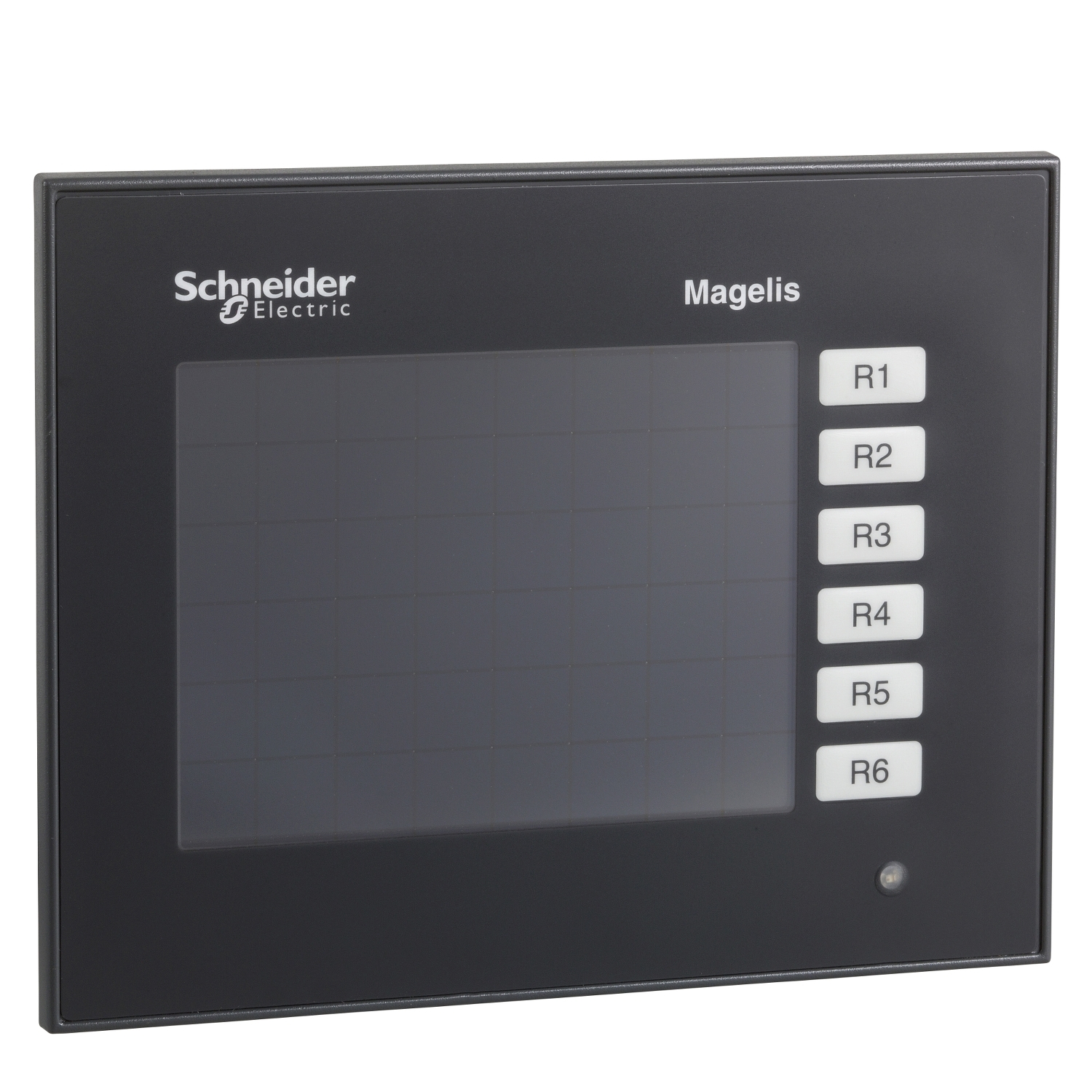

Magelis XBTGT
|
|
|---|---|---|
| product or component type |
Advanced touchscreen panel
|
|
| display type |
Backlit monochrome STN LCD
|
|
| display colour |
Amber or red
8 levels of grey |
|
| display resolution |
320 x 240 pixels QVGA
|
|
| display size |
3.8 inch
|
|
| software type |
Configuration software
|
|
| software designation |
Vijeo Designer
|
|
| operating system |
Magelis
|
|
| processor name |
CPU RISC
|
|
| processor frequency |
100 MHz
|
|
| memory description |
512 kB SRAM back up of data with lithium battery back-up
|
|
| resistance to electrostatic discharge |
6 kV conforming to IEC 61000-4-2 level 3
|
|
| cut-out dimensions |
118 (+ 1/- 0) x 92.5 (+ 1/- 0) mm
|
| touch sensitive zone |
8 x 6 cells
|
|
|---|---|---|
| touch panel |
Resistive film
|
|
| backlight lifespan |
10000 hours (red)
50000 hours (amber) |
|
| brightness |
2 levels via touch panel
|
|
| contrast |
8 levels via touch panel
|
|
| character font |
Taiwanese (traditional Chinese)
Korean Chinese (simplified Chinese) Japanese (ANK, Kanji) ASCII |
|
| [Us] rated supply voltage |
24 V DC
|
|
| supply |
External source
|
|
| supply voltage limits |
19.2…28.8 V
|
|
| inrush current |
<= 50 A
|
|
| power consumption in W |
7 W
|
|
| number of static function keys |
6 with labels
|
|
| local signalling |
1 LED with green for normal operation
|
|
| number of pages |
Limited by internal memory capacity
|
|
| downloadable protocols |
Modbus Telemecanique Modicon
Third party protocols Mitsubishi Melsec Third party protocols Omron Sysmac Third party protocols Rockwell Automation Allen-Bradley Third party protocols Siemens Simatic Uni-TE Telemecanique Modicon |
|
| realtime clock |
Built-in
|
|
| product mounting |
Flush mounting
|
|
| fixing mode |
By 4 screw clamps
By 2 spring clips |
|
| front material |
PPT
|
|
| enclosure material |
PPT
|
|
| marking |
CE
|
|
| width |
5.12 in (130 mm)
|
|
| height |
4.09 in (104 mm)
|
|
| depth |
1.61 in (41 mm)
|
|
| product weight |
0.88 lb(US) (0.4 kg)
|
| immunity to microbreaks |
<= 2 ms
|
|
|---|---|---|
| standards |
CSA C22.2 No 14
UL 508 FCC Class A IEC 61000-6-2 EN 61131-2 UL 1604 |
|
| product certifications |
UL Class 1 Division 2 T5
CSA Class 1 Division 2 T4A CSA Class 1 Division 2 T5 UL Class 1 Division 2 T4A ATEX zone 2/22 cULus C-Tick |
|
| ambient air temperature for operation |
32…122 °F (0…50 °C)
|
|
| ambient air temperature for storage |
-4…140 °F (-20…60 °C)
|
|
| relative humidity |
0…85 % without condensation
|
|
| operating altitude |
< 6561.68 ft (2000 m)
|
|
| IP degree of protection |
IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529 |
|
| NEMA degree of protection |
NEMA 4X front panel (indoor use)
|
|
| shock resistance |
15 gn 11 ms conforming to IEC 60068-2-27
|
|
| resistance to electromagnetic fields |
9.14 V/yd (10 V/m) conforming to IEC 61000-4-3
|
|
| resistance to fast transients |
2 kV conforming to IEC 61000-4-4 level 3
|
| Category |
22569 – MAGELIS XBT-GT (AND XBT-G)
|
|
|---|---|---|
| Discount Schedule |
MC2
|
|
| GTIN |
00785901428978
|
|
| Nbr. of units in pkg. |
1
|
|
| Package weight(Lbs) |
1.6600000000000001
|
|
| Returnability |
N
|
|
| Country of origin |
CN
|
