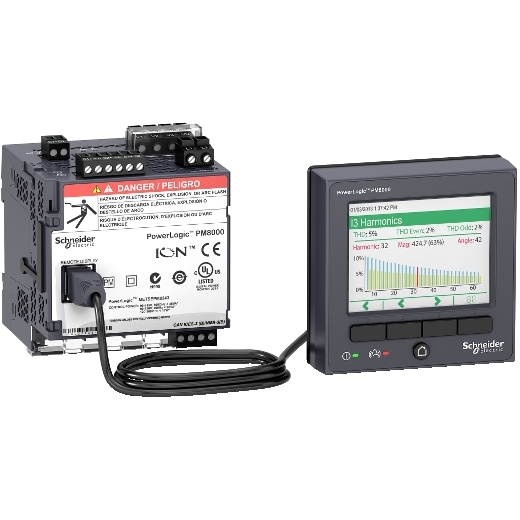

Power Logic PM8000 – PM8244 DIN rail mount meter + Remote display
| range | PowerLogic |
|---|---|
| product name | PowerLogic PM8000 |
| device short name | PM8244 |
| product or component type | Power meter |
| power quality analysis | EN 50160 2010 compliance report IEEE 519 2014 compliance report conforming to IEC 61000-4-30: class S power quality measurement up to the 63rd harmonic harmonic distortion waveform capture voltage sag and swell detection programmablity (logic and math functions) IEC 62586 power quality monitoring |
|---|---|
| device application | WAGES metering Power monitoring |
| type of measurement | Current Voltage Frequency Active and reactive power total Apparent power total Power factor total Active and reactive power per phase, rms Apparent power per phase, rms Power factor per phase, rms |
| supply voltage | 90…415 V AC 45…65 Hz +/- 10 % 110…415 V DC +/- 10 % |
| network frequency | 50 Hz 60 Hz |
| Line Rated Current | 10 A 5 A 1 A |
| poles description | 3P 1P + N 3P + N |
| power consumption in VA | 18 VA 415 V AC |
| display type | Remote LCD display |
| display resolution | 320 x 240 pixels QVGA |
| sampling rate | 256 samples/cycle |
| measurement current | 50…10000 mA |
| analogue input type | Voltage 5 MOhm) current 0.3 mOhm) |
| measurement voltage | 57…400 V AC 42…69 Hz between phase and neutral 100…690 V AC 42…69 Hz between phases |
| frequency measurement range | 42…69 Hz |
| number of inputs | 3 digital 30 V AC 3 digital 60 V DC |
| measurement accuracy | Current +/- 0.1 % Voltage +/- 0.1 % Active energy +/- 0.2 % |
| accuracy class | Class 0.2S active energy IEC 62053-22 Class 0.2 active energy ANSI C12.20 Class 0.2 active power IEC 61557-12 Class 0.5S reactive energy IEC 62053-24 Class 0.5 power factor IEC 61557-12 Class 0.2 voltage IEC 61557-12 Class 0.2 current IEC 61557-12 |
| number of outputs | 1 pulse |
| information displayed | Voltage Current Frequency Power Energy consumption Harmonic distortion |
| communication port protocol | Modbus RTU 115 kbauds – 2-wire ION 115 kbauds – 2-wire DNP3 IEC 61850 Modbus TCP/IP Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s RSTP 801.1d 2004 |
| communication port support | Ethernet Screw terminal block RS485 |
| communication network type | IPv6 (internet protocol) |
| data recording | Sequence of event recording Event logs Min/max of instantaneous values Harmonics logs Alarm logs GPS synchronisation Waveform logs Data logs Time stamping Trending/forecasting Sag and swell logs |
| memory capacity | 512 MB |
| web services | Customizable home page File upload/download via FTP File upload/download via SFTP Web server Alarm notification by e-mail Viewing of captured waveform (FTP) Viewing of captured waveform (web) HTTPS server |
| communication service | SMTP e-mail notification RSTP support NTP time synchronization DHCP PTP time synchronization |
| cybersecurity | Password protection Syslog protocol support Port hardening Robust security logs Enable/disable communication ports |
| mounting mode | Flush-mounted Clip-on |
| mounting support | DIN rail meter device Framework remote display |
| provided equipment | Remote display |
| installation category | III |
| Safety Construction | III400…690 V conforming to IEC 61010-1:ed. 3 III400…690 V conforming to EN 61010-1:ed. 3 III347…600 V conforming to UL 61010-1:ed. 3 III347…600 V conforming to CSA C22.2 No 61010-1:ed. 3 |
| standards | IEC 62053-22 IEC 62053-24 IEC 62052-11 IEC 61557-12 IEEE 1588 IEC 62586-2 IEC 61326-1 |
| product certifications | CE CULus N998 |
| width | 3.56 in (90.5 mm) |
| depth | 3.57 in (90.8 mm) |
| height | 3.56 in (90.5 mm) |
| net weight | 18.62 oz (528 g) |
| electromagnetic compatibility | Electrostatic discharge conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test IEC 61000-4-3 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency IEC 61000-4-8 Voltage dips and interruptions immunity test IEC 61000-4-11 Immunity to impulse waves conforming to IEC 61000-4-12 Conducted and radiated emissions EN 55022 Conducted and radiated emissions EN 55011 Conducted and radiated emissions FCC part 15 Conducted and radiated emissions ICES-003 Conducted RF disturbances 2…150 Hz) CLC/TR 50579 Surge withstand IEEE C37.90.1 |
|---|---|
| IP degree of protection | IP30 IEC 60529 |
| relative humidity | 5…95 % |
| ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| operating altitude | 9842.52 ft (3000 m) |
| Category | 09797 – POWERLOGIC PM8000 HARDWARE |
|---|---|
| Discount Schedule | PL1 |
| GTIN | 00785901526148 |
| Nbr. of units in pkg. | 1 |
| Package weight(Lbs) | 1.4 lb(US) (0.64 kg) |
| Returnability | Yes |
| Country of origin | CA |
| Package 1 Height | 5.51 in (14.000 cm) |
|---|---|
| Package 1 width | 5.51 in (14.000 cm) |
| Package 1 Length | 14.57 in (37.000 cm) |
| Sustainable offer status | Green Premium product |
|---|---|
