Description

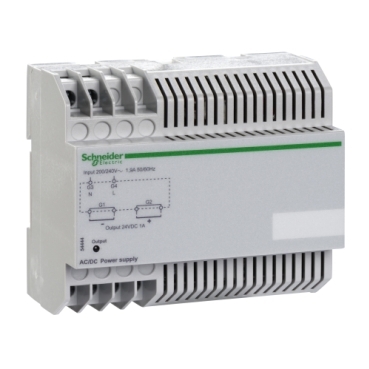

| product or component type | External power supply module |
|---|---|
| device application | Power supply |
| range compatibility | Masterpact (MasterPact NT) circuit breaker Masterpact (MasterPact NW) circuit breaker ComPact (ComPact NS) circuit breaker ComPact (ComPact NSX) circuit breaker ComPact (ComPact NSX DC) circuit breaker PowerPact (PowerPact Multistandard) circuit breaker Masterpact (MasterPact MTZ1) circuit breaker Masterpact (MasterPact MTZ2) circuit breaker Masterpact (MasterPact MTZ3) circuit breaker PowerPact (PowerPact H) circuit breaker PowerPact (PowerPact J) circuit breaker PowerPact (PowerPact L) circuit breaker |
| accessory / separate part type | Control units accessories |
| trip unit name | Micrologic |
|---|---|
| power supply type | Regulated switch mode |
| [Us] rated supply voltage | 200…240 V AC 50/60 Hz tolerance: +10 % -15 % |
| output voltage | 24 V DC +/-5 % |
| overvoltage category | IV conforming to IEC 62477-1 |
| height | 88 mm |
| width | 105 mm |
| depth | 59 mm |
| compatibility code | CB_EXTERNAL_POWERSUPPLY |
|---|
