Description

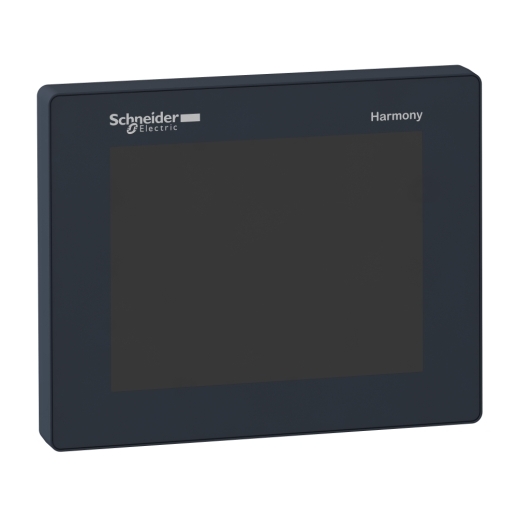

5”7 color touch controller panel – Dig 8 inputs/8 outputs +Ana 4 In/2 Out
| range of product | Harmony SCU |
|---|---|
| product or component type | Small touch HMI controller |
| display size | 5.7 inch |
| display type | With backlit LED colour TFT LCD |
| touch panel | Analogue |
| device presentation | Complete product |
| display resolution | 320 x 240 pixels QVGA |
|---|---|
| backlight lifespan | 50000 hours with 65000 colours |
| brightness | 16 levels via touch panel |
| view angle horiz x vert | 60° left 60° right 40° top 60° bottom |
| character font | Chinese (simplified Chinese) Japanese (ANK, Kanji) ASCII Korean Taiwanese (traditional Chinese) |
| supply | External source |
| [Us] rated supply voltage | 24 V (20.4…28.8 V)DC |
| immunity to microbreaks | 10 ms |
| inrush current | 30 A |
| power consumption in W | 24 W |
| local signalling | No indicator |
| number of pages | Limited by internal memory capacity |
| software designation | SoMachine |
| operating system | Harmony |
| processor name | CPU RISC |
| processor frequency | 333 MHz |
| memory description | Flash NAND, 128 MB Internal data storage FRAM, 128 kB Application run DRAM, 128 MB |
| integrated connection type | 1 serial link – RJ45 – RS232/RS485 (rate: <= 115.2 kbits/s) 1 Ethernet TCP/IP – RJ45 1 USB 2.0 type mini B 1 USB 2.0 type A CANopen master bus – SUB-D 9 |
| realtime clock | Built-in |
| downloadable protocols | Modbus Modbus TCP/IP CANopen |
| fixing mode | By 1 nut – diameter: Ø 22 mm, mounting on: 1…6 mm thick panel |
| enclosure material | PC/PBT and PAA |
| shock resistance | 147 m/s² for 11 ms (on DIN rail) conforming to IEC 60068-2-27 294 m/s² for 6 ms (on panel mounting) conforming to IEC 60068-2-27 |
| vibration resistance | +/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6 1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6 |
| electromagnetic compatibility | Electrostatic discharge immunity test – test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test – test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields – test level: 10 V/m (80 MHz…3 GHz) conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test – test level: 2 kV (power lines) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 2 kV (relay wires) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 1 kV (COM line) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 1 kV (CAN line) conforming to IEC 61000-4-4 Surge immunity test – test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5 Surge immunity test – test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5 Surge immunity test – test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5 Surge immunity test – test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5 Conducted RF disturbances – test level: 10 V (0.15…80 MHz) conforming to IEC 61000-4-6 Conducted emission – test level: 150 kHz…30 MHz conforming to EN 55011 Radiated emission – test level: 30 MHz…1 GHz conforming to EN 55011 |
| discrete input number | 2 for fast input (normal mode) conforming to IEC 61131-2 Type 1 6 for digital input conforming to IEC 61131-2 Type 1 |
| discrete input voltage | 24 V DC, discrete input logic: sink or source (positive/negative) |
| number of common point | 1 for fast input (HSC mode) 1 for digital input |
| discrete input current | 7.83 mA for fast input 5 mA for digital |
| input impedance | 4.7 kOhm 2.81 kOhm |
| sensor power supply | 15…28.8 V DC >= 15 V, current (state 1): >= 5 mA <= 5 V, current (state 0): <= 1.5 mA 15…28.8 V DC >= 15 V, current (state 1): >= 2.5 mA <= 5 V, current (state 0): <= 1 mA |
| configurable filtering time | 0 ms no filter (none) 0.004…0.04 ms bounce filter (latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) 3…12 ms integrator (none/run/stop) |
| maximum input frequency | 100 kHz for fast input (encoder mode) – control type A/B 100 kHz for fast input – control type single phase 100 kHz for fast input – control type pulse/direction |
| maximum cable distance between devices | Shielded cable: <10 m for fast input Shielded cable: <100 m for digital input Unshielded cable: <50 m for digital input |
| connection pitch | 3.5 mm |
| overvoltage protection | With overvoltage protection |
| isolation between channels and internal logic | 500 V DC |
| isolation between channels | None |
| discrete output number | 2 fast output (normal mode), output logic: source 6 digital output, output logic: source |
| discrete output voltage | 24 V DC (voltage limit: 19.2…28.8 V) with transistor discrete output(s) 24 V DC (voltage limit: 5…30 V) with relay discrete output(s) 220 V AC (voltage limit: 100…250 V) with relay discrete output(s) |
| input/output number | 2 for fast input, terminal(s): FI0…FI1 2 for fast output, terminal(s): FQ0…FQ1 6 for digital input, terminal(s): DI0…DI5 6 for digital output, terminal(s): DQ0…DQ5 |
| discrete output current | 2 A 4 A), response time 5 ms with opening contact for digital output 2 A 4 A), response time 2 ms with closing contact for digital output 300 mA, response time 2 ms for fast output (normal mode) 50 mA, response time 2 ms for fast output (PWM or PTO mode) |
| insulation resistance | > 10 MOhm between the I/O and internal logic > 10 MOhm between power supply and earth |
| maximum output frequency | 100 kHz for fast output (PTO mode) 1 kHz for fast output (PWM mode) |
| absolute accuracy error | +/- 0.1 % of full scale cyclic ratio 1…99% for fast output (PWM or PTO mode) 1 % of full scale cyclic ratio 1…99% for fast output (PWM or PTO mode) +/- 5 % of full scale cyclic ratio 10…90% for fast output (PWM or PTO mode) +/- 10 % of full scale cyclic ratio 20…80% for fast output (PWM or PTO mode) +/- 15 % of full scale cyclic ratio 30…70% for fast output (PWM or PTO mode) |
| analogue input number | 2 for analog input 2 for RTDs |
| analogue input range | 0…20 mA/4…20 mA – resolution: 12 bits, input impedance: 250 Ohm (tolerance: +/- 1 %) -10…+10 V or 0…10 V – resolution: 12 bits + sign, input impedance: >= 1 MOhm |
| analogue input type | RTD at – 200…600 °C – resolution: 16 bits temperature probe: Pt 100/Pt 1000 RTD at – 50…200 °C – resolution: 16 bits temperature probe: Ni 100/Ni 1000 RTD at – 200…760 °C – resolution: 16 bits (thermocouple J) RTD at – 240…1370 °C – resolution: 16 bits (thermocouple K) RTD at 0…1600 °C – resolution: 16 bits (thermocouple R) RTD at 200…1800 °C – resolution: 16 bits (thermocouple B) RTD at 0…1600 °C – resolution: 16 bits (thermocouple S) RTD at – 200…400 °C – resolution: 16 bits (thermocouple T) RTD at – 200…900 °C – resolution: 16 bits (thermocouple E) RTD at – 200…1300 °C – resolution: 16 bits (thermocouple N) |
| analogue output number | 2 resistive load for 12 bits + sign |
| analogue output range | 0…20 mA/4…20 mA (> 300 Ohm) for open-circuit -10…10 V/0…10 V (> 2 kOhm) for short-circuit |
| height | 129.4 mm |
| width | 163 mm |
| depth | 76.22 mm |
| net weight | 0.803 kg |
| standards | FCC Class A EN 61131-2 UL 508 IEC 61000-6-2 CSA C22.2 No 213 Class I Division 2 ANSI/ISA 12-12-01 |
|---|---|
| product certifications | CULus 508 cULus CSA 22-2 No 142 GOST cUL 1604 Class 1 Division 2 C-Tick KCC |
| marking | CE |
| ambient air temperature for operation | 0…50 °C |
| ambient air temperature for storage | -20…60 °C |
| relative humidity | 5…85 % without condensation |
| operating altitude | <= 2000 m |
| storage altitude | 0…10000 m |
| maximum pressure | 800…1114 hPa |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529 IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel |
| pollution degree | 2 conforming to IEC 60664 |
| environmental characteristic | Corrosive gas free |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.364 kg |
| Package 1 Height | 188 mm |
| Package 1 width | 110 mm |
| Package 1 Length | 207 mm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 4 |
| Package 2 Weight | 5.964 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 64 |
| Package 3 Weight | 135.776 kg |
| Package 3 Height | 75 cm |
| Package 3 width | 80 cm |
| Package 3 Length | 120 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
