Description

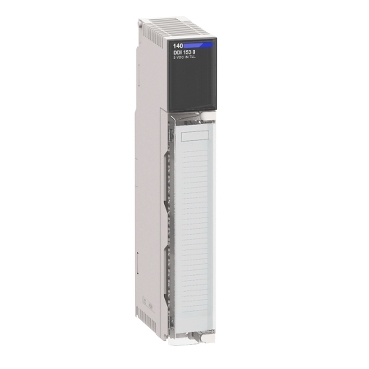

| range of product | Modicon Quantum automation platform |
|---|---|
| product or component type | Low voltage dc discrete input modules |
| discrete input number | 32 |
| group of channels | 4 |
|---|---|
| logic input | Negative (source) |
| discrete input voltage | 5 V TTL DC |
| input voltage limits | 4.5…5.5 V |
| voltage state 1 guaranteed | 0.8 V DC |
| voltage state 0 guaranteed | >= 4 V DC at 5.5 V supply voltage |
| current state 1 guaranteed | 4 mA |
| addressing requirement | 2 input words |
| input impedance | 7500 Ohm |
| maximum leakage current | 200 mA at Us = 5.5 V and Uin = 4 V |
| absolute maximum input | 15 V during 1.3 ms decaying pulse 5.5 V continuous |
| response time | <= 250 µs from state 0 to state 1 <= 500 µs from state 1 to state 0 |
| protection type | Input protection |
| power dissipation | 5 W |
| isolation between group and bus | 1780 Vrms for 1 minute |
| isolation between group | 500 Vrms for 1 minute |
| local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status |
| marking | CE |
| bus current requirement | 170 mA |
| module format | Standard |
| net weight | 0.45 kg |
| standards | CSA C22.2 No 142 UL 508 |
|---|---|
| product certifications | GOST FM Class 1 Division 2 cUL |
| resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| ambient air temperature for operation | 0…60 °C |
| ambient air temperature for storage | -40…85 °C |
| relative humidity | 95 % without condensation |
| operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 423.0 g |
| Package 1 Height | 16.3 cm |
| Package 1 width | 4.5 cm |
| Package 1 Length | 31.2 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 2 |
| Package 2 Weight | 836.0 g |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
