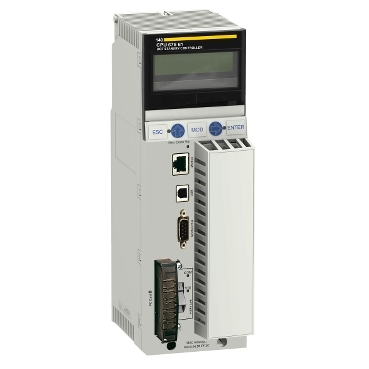

Description
| Range of product | Modicon Quantum automation platform |
|---|---|
| Product or component type | Unity processor |
| Mode of transmission | Single mode |
|---|---|
| Clock frequency | 266 MHz |
| Number of slots | 16 6 2 10 4 |
| number of racks | 2 – local rack(s) |
| number of distributed I/O station | 63 station(s) – 1 rack(s) – 3 Modbus Plus network(s) |
| number of remote I/O station | 31 – 2 rack(s) per S908 remote I/O 31 – 2 rack(s) per ethernet Quantum remote I/O 31 – 2 rack(s) per ethernet X80 remote I/O |
| discrete I/O number | 31744 inputs, 31744 outputs – remote 8000 inputs, 8000 outputs – distributed – per network Modbus Plus Unlimited (31 drops of 28 slots max) – ethernet remote I/O 0 – local – forbidden in Hot Standby application |
| analogue I/O number | 500 inputs, 500 outputs – distributed – per network Modbus Plus Unlimited (31 drops of 28 slots max) – ethernet remote I/O 1984 inputs,1984 outputs – remote 0 – local – forbidden in Hot Standby application |
| Application specific I/O | High-speed interrupt inputs Counter Serial link Accurate time stamping |
| Communication service | Ethernet router |
| number of optional modules | 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| maximum number of connections | 1 USB 2 AS-Interface – distributed 4 AS-Interface – remote 6 Ethernet TCP/IP – local 6 Modbus Plus – local 6 Profibus DP – local 1 Modbus (RS232/485 Modbus/ASCII) |
| integrated connection type | 1 Modbus Plus with 1 Modbus with 1 USB with 1 optic fibre with Hot Standby |
| Checks | Hot standby Process control |
| memory description | Expandable 7168 kB – program with PCMCIA card Expandable 8 MB – file storage with PCMCIA card Internal RAM 3072 kB – 1536 kB for data |
| Switch function | Key switch memory port on/off |
| application structure | 1 periodic fast task – forbidden in Hot Standby application 128 I/O interrupt tasks – forbidden in Hot Standby application 128 interrupt tasks – forbidden in Hot Standby application 32 timer interrupt tasks – forbidden in Hot Standby application 4 auxiliary tasks – forbidden in Hot Standby application 1 cyclic/periodic master task – |
| number of instructions per ms | 10.28 Kinst/ms 100 % Boolean 10.07 Kinst/ms 65 % Boolean and 35 % numerical |
| system overhead | 0.2 ms for fast task 1 ms for master task |
| Bus current requirement | 2760 mA |
| local signalling | 1 LED (green) for Ethernet activity (COM) 1 LED (red) for Ethernet collision |
| electrical connection | 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network 1 connector, connector type: RJ45 for connecting Modbus bus 1 connector, connector type: LC (single mode fiber optic) for interconnecting primary and secondary PLCs up to 16 km |
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Product certifications | UL Misc (Marine) CSA CE GOST |
| Standards | HazLoc |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.0 cm |
| Package 1 Width | 18.5 cm |
| Package 1 Length | 32.5 cm |
| Package 1 Weight | 1.424 kg |
