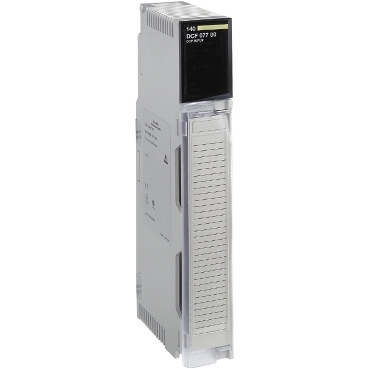

140DCF07700 ⋆ MODICON PAC

Description

Main
Range of product	Modicon Quantum automation platform
Product or component type	PLC clock synchronization module
Processor name	80C32-25

Complementary
Function of module	Time and date stamping of events Time based tables Periodic time and date stamping of process values
Discrete input number	1
Discrete input type	DCF signal
Input voltage	24 V DC
insulation	Optocoupler
Clock frequency	221184 MHz
Memory type	Flash 128 kB for the program and the firmware RAM 2 kB for the DPM RAM 256 kB for data and the program
Local signalling	1 LED (green) for communication on the bus (Active) 1 LED (red) for fault (F) 1 LED (green) for module running (R) 1 LED (green) for reception of date/time, flashes in time with the input signal (DCF77) 1 LED (red) for no synchronization with time receiver signal (ERROR 2) 1 LED (red) for no synchronization with time receiver signal since 60 minutes (ERROR 1) 1 LED (yellow) for synchronization with time receiver signal (STATUS)
Electrical connection	1 connector plug-in 6 screw terminals
Current consumption	30 mA at 24 V DC 300 mA at 5 V DC internal via the system bus
Product weight	0.45 kg

Environment
Resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields	10 V/m 80…2000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	95 % without condensation
Operating altitude	<= 5000 m
standards	UL 508 HazLoc
Product certifications	RRS C-Tick CSA Class 1 Division 2 UL GL GOST DNV LR RINA ABS
