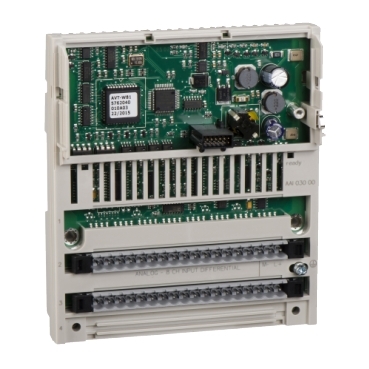

Name: 170AAI14000
SKU: 5793
Price: 2250.00 USD
Availability: InStock

Description

Main
range of product	Modicon Momentum automation platform
product or component type	Analogue input base
analogue input number	16
analogue input type	Single ended
analogue input range	4…20 mA 12 bits < 0.25 Ohm +/- 10 V 12 bits + sign > 2200 kOhm +/- 5 V 12 bits + sign > 2200 kOhm
type of filter	Low pass input filter 10 kHz

Complementary
data format	Full 16 bits signed
absolute accuracy error	+/- 0.15 % of full scale 25 °C +/- 10 V +/- 0.15 % of full scale 25 °C +/- 5 V +/- 0.25 % full scale 25 °C 4…20 mA +/- 0.25 % full scale 60 °C +/- 10 V +/- 0.25 % full scale 60 °C +/- 5 V +/- 0.45 % full scale 60 °C 4…20 mA
temperature drift	30 %oFS/°C +/- 10 V 60 °C 30 %oFS/°C +/- 5 V 60 °C 60 %oFS/°C 4…20 mA 60 °C
full scale	10 V +/- 10 V 16 mA 4…20 mA 5 V +/- 5 V
update time	25 ms
isolation between channels and ground	1780 V AC for 1 minute
isolation between supply and ground	500 V for 1 minute
permissible common mode voltage	100 V 47…63 Hz DC between channels to ground 250 V 47…63 Hz AC between channels to ground
external power requirement	+/- 30 V DC
maximum power dissipation in W	5.55 W
reverse polarity protection	Internal
protection type	Internal 2 A slow-blow
associated fuse rating	500 mA, fast blow
marking	CE
local signalling	16 LEDs for channel status
electrical connection	2 connectors for removable terminal blocks
current consumption	305 mA at 24 V DC
depth	47.5 mm
height	125 mm
width	141.5 mm
net weight	0.215 kg

Environment
product certifications	UL FM Class 1 Division 2 CSA
protective treatment	TC
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…1000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m
