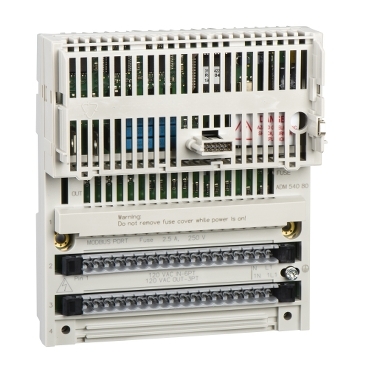

Name: 170ADM54080
SKU: 6282
Price: 847.00 USD
Availability: InStock

Description

Main
range of product	Modicon Momentum automation platform
product or component type	Modbus I/O module base
group of channels	1 group of 6 discrete inputs 1 group of 3 discrete outputs
discrete input number	6
discrete output number	3
number of port	1
communication port protocol	Modbus
wiring mode	2 or 4 wires

Complementary
discrete input logic	Positive
discrete input voltage	120 V AC 47…63 Hz 0…132 V AC
input overvoltage protection	200 V
voltage state 1 guaranteed	>= 79 V
voltage state 0 guaranteed	<= 20 V
current state 1 guaranteed	>= 5.5 mA
current state 0 guaranteed	<= 1.9 mA
discrete output logic	Positive
discrete output voltage	120 V 47…63 Hz
discrete output current	0.5 mA per point 1.5 mA per module
maximum voltage drop	<1.5 V 0.5 A at state on
maximum leakage current	1.9 mA AC 120 V
surge current	30 mA
response time	< 12.3 ms 60 Hz from state 1 to state 0 input circuit < 12.3 ms 60 Hz from state 1 to state 0 output circuit < 12.5 ms 60 Hz from state 0 to state 1 input circuit < 12.5 ms 60 Hz from state 0 to state 1 output circuit
communication port support	RS485
transmission rate	9600 bit/s 19200 bit/s
data format	8-bit RTU 7-bit ASCII
number of addresses	0…247
port timeout	150 ms
marking	CE
electrical connection	2 connectors for removable terminal blocks
current consumption	125 mA at 120 V
net weight	0.24 kg

Environment
product certifications	CSA UL
protective treatment	TC
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…1000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m
