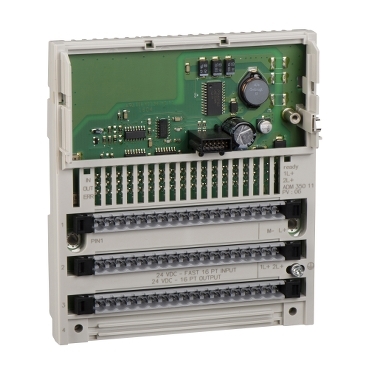

Name: 170ADM85010
SKU: 5753
Price: 775.00 USD
Availability: InStock

Description

Main
range of product	Modicon Momentum automation platform
product or component type	Discrete relay I/O base DC
group of channels	1 group of 16 outputs 1 group of 16 inputs
discrete input number	16 conforming to IEC 1131-2 Type 3
discrete input logic	Positive
discrete input voltage	24 V DC 12 V DC 48 V DC
discrete output number	16
discrete output type	Solid state switch
discrete output voltage	<= 60 V DC 12 V DC 24 V DC 48 V DC
discrete output logic	Positive
protective treatment	TC

Complementary
[Us] rated supply voltage	12 V DC 24 V DC 48 V DC
input voltage limits	10…60 V
voltage state 0 guaranteed	< 10 V 48 V < 2.5 V 12 V < 5 V 24 V
voltage state 1 guaranteed	> 11 V 24 V > 30 V 48 V > 7.5 V 12 V
current state 1 guaranteed	2.3 mA 12 V 2.7 mA 24 V 2.9 mA 48 V
discrete output current	0.5 A per point 7 A 60 °C per module 8 A 50 °C per group
maximum leakage current	1 mA at 60 V (output circuit)
peak output current	5 A
maximum voltage drop	<1 V 0.5 A at state 1 output circuit
fault type	Overload on output
response time	< 0.1 ms from state 0 to state 1 on output < 0.1 ms from state 1 to state 0 on output 2.2 ms from state 0 to state 1 on input 3.3 ms from state 1 to state 0 on input
isolation between group of I/O channels	707 V DC
isolation between channels and bus	707 V DC
power dissipation	6.0 + (0.144 x number of input points) + (0.25 x number of output points)
current consumption	250 mA at 24 V DC 125 mA at 48 V DC 500 mA at 12 V DC
depth	47.5 mm
height	141.5 mm
width	125 mm

Environment
product certifications	FM Class 1 Division 2 UL CSA
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…1000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m
