Description

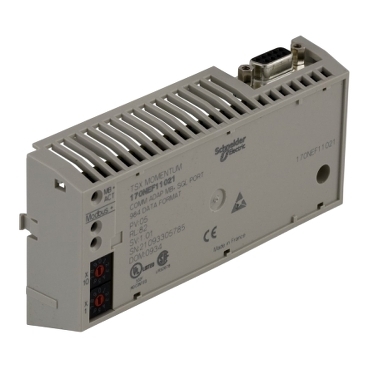

| range of product | Modicon Momentum automation platform |
|---|---|
| product or component type | Modbus Plus communication adaptor |
| bus manager PLC | Compact 984 Quantum |
| structure type | Industrial |
| communication port protocol | Modbus Plus |
| method of access | Peer to peer Token bus |
| transmission rate | 1 Mbit/s |
| transmission support medium | Twisted pair |
| topology | Multidrop, device connecting by extension or tap off cable |
|---|---|
| number of devices per segment | 0…31 per segment 0…63 all segment |
| maximum cable distance between devices | 5000 m with repeater |
| data format | 984 |
| fail state | Full scale value Maintain value Fallback to zero Forcing to state zero |
| supply | From I/O base |
| marking | CE |
| local signalling | 1 LED (green) for module powered up or communicating (MB + ACT) 1 LED (red) for communication error network A (ERR A) 1 LED (red) for communication error network B (ERR B) |
| electrical connection | 1 connector SUB-D 9 for connecting Modbus Plus network 1 connector SUB-D 9 for redundant Modbus Plus network |
| product certifications | CSA UL |
|---|---|
| protective treatment | TC |
| resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| resistance to electromagnetic fields | 10 V/m 80…1000 MHz conforming to IEC 801-3 |
| ambient air temperature for operation | 0…60 °C |
| ambient air temperature for storage | -40…85 °C |
| relative humidity | 95 % without condensation |
| operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 193.0 g |
| Package 1 Height | 5.8 cm |
| Package 1 width | 18 cm |
| Package 1 Length | 25.9 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Weight | 1.997 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
