Description

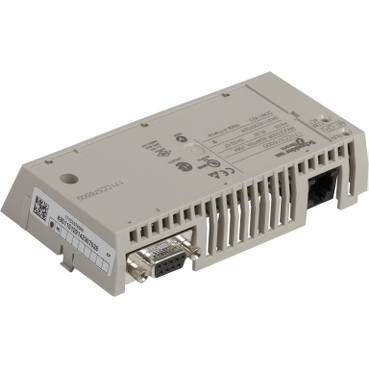

M1/M1E processor adaptor, Modicon Momentum, transparent ready, 544kB RAM, EtherNet, I/O bus
| Range of Product | Modicon Momentum automation platform |
|---|---|
| Product or Component Type | M1/M1E processor adaptor |
| Software designation | Concept V2.6 Modsoft >= V2.5 ProWORX NxT V2.0 ProWORX 32 |
| communication port protocol | Modbus |
| Processor name | X 86 based (INTEL, AMD) |
| Clock frequency | 32 MHz |
| Discrete I/O processor capacity | 2048 I/2048 O |
|---|---|
| Memory Type | 256 kB flash 256 kB RAM |
| Memory description | Program memory 12 kB LL984 Program memory 160 kB IEC Data 4 kB |
| Material | Lexan |
| Word length | 16 bit |
| [Us] rated supply voltage | 5.0 V DC +/-5 % |
| supply | By Momentum I/O base |
| Exact time for 1 Kinstruction | 1 ms |
| Register I/O processor capacity | 4096 words total |
| I/O limit processor capacity | 8192 bits max |
| I/O words/drop | 128 I/O Concept 80 I/O ProWORX |
| Number of port | 1 I/O bus 1 RS232C non isolated |
| Marking | CE |
| Net Weight | 0.09 lb(US) (0.042 kg) |
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 5…96 % without condensation |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | <= 15 gn peak 11 ms half sine wave acceleration |
| Vibration resistance | 1 gn 0.75 mm d.a |
| Product Certifications | FM Class 1 Division 2 cUL Nema type 250 UL |
| Category | 18206-MOMENTUM PROCESSORS,I/O BASES,CONN. |
|---|---|
| Discount Schedule | PC31 |
| GTIN | 3595861147812 |
| Returnability | No |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.5 cm) |
| Package 1 Width | 7.09 in (18 cm) |
| Package 1 Length | 10.24 in (26 cm) |
| Package 1 Weight | 7.27 oz (206 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 5.91 in (15 cm) |
| Package 2 Width | 11.81 in (30 cm) |
| Package 2 Length | 15.75 in (40 cm) |
| Package 2 Weight | 4.11 lb(US) (1.862 kg) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 8 |
| Package 3 Height | 11.81 in (30 cm) |
| Package 3 Width | 11.81 in (30 cm) |
| Package 3 Length | 15.75 in (40 cm) |
| Package 3 Weight | 4.77 lb(US) (2.163 kg) |
