Description

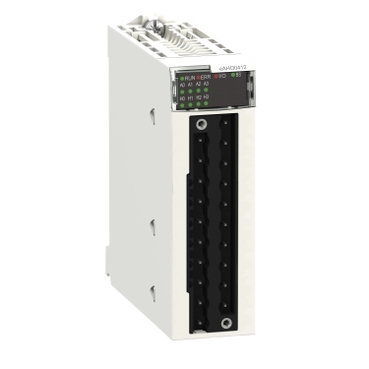

| range of product | Modicon X80 |
|---|---|
| product or component type | Analog output module |
| application specific I/O | HART |
|---|---|
| product compatibility | BMEP58… processor BMEXBP… backplane ABE7CPA21 Head module BMECRA31210 BMXFTB20… terminal block |
| electrical connection | 20 ways terminal block Telefast |
| Isolation between channels | Isolated |
| measurement error | 0.1 % of full scale 25 °C 0.2 % of full scale 0…60 °C |
| temperature drift | 45 ppm/°C |
| isolation voltage | 1000 V DC for 60 s between channels 1400 V DC for 60 s between channels and ground 1400 V DC for 60 s between channels and bus |
| checks | Broken wire detection |
| load impedance ohmic | 600 Ohm 0…20 mA 570 Ohm 0…21 mA |
| analogue output number | 4 |
| analogue output type | Current: 4…20 mA |
| analogue output resolution | 15 bits + sign |
| topology | Point-to-point |
| function available | I/O mapping |
| net weight | 0.223 kg |
| ambient air temperature for operation | 0…60 °C |
|---|---|
| directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| product certifications | CE RCM CSA EAC Merchant Navy UL |
| standards | EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 11.1 cm |
| Package 1 Length | 11.8 cm |
| Package 1 Weight | 220.0 g |
