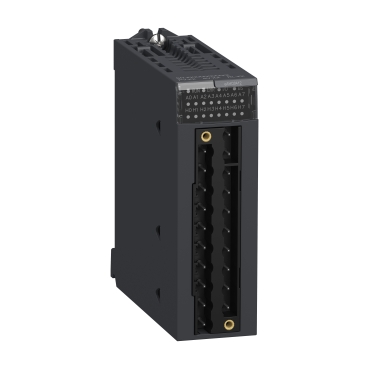

Description
| Range of Product | Modicon X80 |
|---|---|
| Product or Component Type | Analog output module |
| application specific I/O | HART |
|---|---|
| Product Compatibility | BMEP58… processor BMEXBP… backplane ABE7CPA21 Head module BMECRA31210 BMXFTB20… terminal block |
| Electrical connection | 20 ways terminal block Telefast |
| Isolation between channels | Isolated |
| Measurement error | 0.1 % of full scale 25 °C 0.2 % of full scale 0…60 °C |
| Temperature drift | 45 ppm/°C |
| Isolation voltage | 1000 V DC 60 s between channels 1400 V DC 60 s between channels and ground 1400 V DC 60 s between channels and bus |
| Checks | Broken wire detection |
| Load impedance ohmic | 600 Ohm 0…20 mA 570 Ohm 0…21 mA |
| analogue output number | 4 |
| Analogue output type | Current 4…20 mA |
| Analogue output resolution | 15 bits + sign |
| Topology | Point-to-point |
| Function Available | I/O mapping |
| Net Weight | 0.49 lb(US) (0.223 kg) |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
|---|---|
| Directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| Product certifications | CE RCM CSA EAC Merchant Navy UL |
| Standards | EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
| Category | 18160-MODICON M340 |
|---|---|
| Discount Schedule | PC34 |
| GTIN | 3606480692321 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 4.37 in (11.100 cm) |
| Package 1 Length | 4.65 in (11.800 cm) |
| Package 1 Weight | 7.62 oz (216.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 7.87 lb(US) (3.571 kg) |
