Sale!

BMEH582040

Original price was: $ 4,004.00.Current price is: $ 3,080.00.

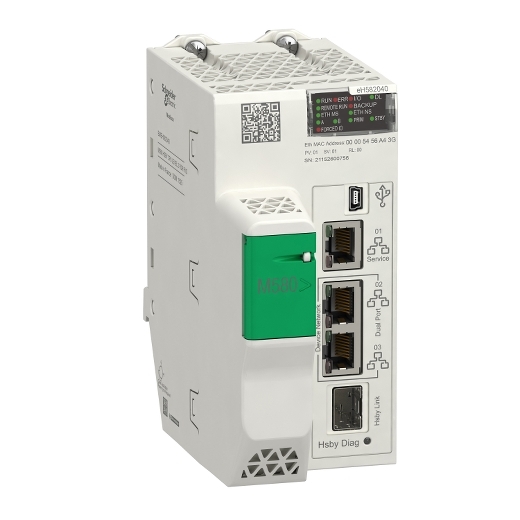

Redundant processor module, Modicon M580, HSBY Level 2, Remote BMEH582040

In stock

Category: Tag:

Description

Redundant processor module, Modicon M580, HSBY Level 2, Remote BMEH582040

Main
range of product Modicon M580 BMEH582040
product or component type Redundant processor module BMEH582040
Complementary
number of racks 1
application specific I/O Counter
Accurate time stamping
Serial link
HART
Motion control
SSI encoder
checks Process control
control channels Programmable loops
integrated connection type 1 Ethernet TCP/IP for service port
2 Ethernet TCP/IP for device network
USB type mini B
1 Ethernet for HSBY port
number of remote I/O station 8 – 2 rack(s) per X80 remote drop
number of distributed equipment 64
communication module processor capacity 2 Ethernet communication module
8 AS-Interface module
communication service DIO scanner
RIO scanner
memory description Expandable flash, 4 GB for data storage
Integrated RAM, 10 kB for system memory
Integrated RAM, 8 MB for program
Integrated RAM, 768 kB for data
application structure 1 periodic fast task
1 cyclic/periodic master task
number of instructions per ms 7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
10 Kinst/ms 100 % Boolean
current consumption 270 mA at 24 V DC
MTBF reliability 600000 H
marking CE
Environment
vibration resistance 3 gn
shock resistance 30 gn
ambient air temperature for operation 0…60 °C
ambient air temperature for storage -40…85 °C
operating altitude 0…2000 m
2000…5000 m with derating factor
relative humidity 5…95 % at 55 °C without condensation
IP degree of protection IP20
directives 2014/35/EU – low voltage directive
2014/30/EU – electromagnetic compatibility
supply Internal power supply via rack
status LED 1 LED (green)processor running (RUN)
1 LED (red)processor or system fault (ERR)
1 LED (red)I/O module fault (I/O)
1 LED (green)download in progress (DL)
1 LED (red)memory card or CPU flash fault (BACKUP)
1 LED (green/red)ETH MS (Ethernet port configuration status)
1 LED (green/red)Eth NS (Ethernet network status)
1 LED (green)peer processor running (REMOTE RUN)
1 LED (green)processor ID set to A (A)
1 LED (green)processor ID set to B (B)
1 LED (green)processor acting as Primary (PRIM)
1 LED (green)processor acting as Standby (STBY)
1 LED (green)I/O values overrided by user (FORCED IO)
1 LED (green)Hot standby link status (Hsby Diag)
net weight 0.849 kg
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 895 g
Package 1 Height 8.5 cm
Package 1 width 17.5 cm
Package 1 Length 25 cm
Unit Type of Package 2 S03
Number of Units in Package 2 6
Package 2 Weight 5.37 kg
Package 2 Height 30 cm
Package 2 width 30 cm
Package 2 Length 40 cm
Offer Sustainability
Sustainable offer status Green Premium product
REACh Regulation REACh Declaration
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)

EU RoHS Declaration

Mercury free Yes
RoHS exemption information Yes
China RoHS Regulation China RoHS declaration
Circularity Profile End of Life Information
WEEE The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
California proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
