Description

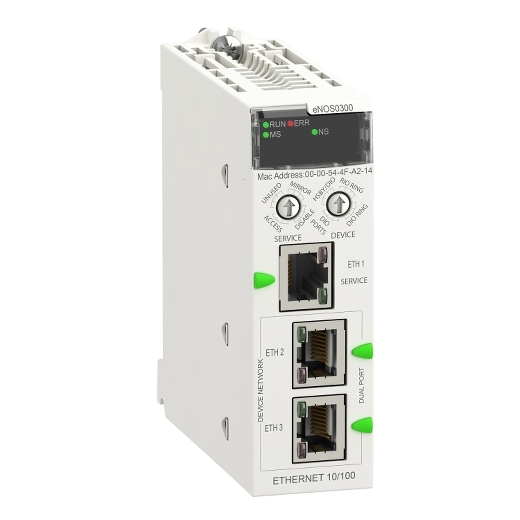

Network Option Switch
| range of product | Modicon X80 |
|---|---|
| product or component type | Switch module |
| product compatibility | BMEXBP… backplane |
| [Us] rated supply voltage | 24 V for back plane |
|---|---|
| power consumption in W | 3.3 W at 135 mA 25 °C 4.5 W at 185 mA 60 °C |
| number of port | 3 |
| integrated connection type | Ethernet/IP for device network Ethernet/IP for service port |
| communication port protocol | EtherNet/IP |
| local signalling | 1 LED (green) for module active (RUN) 1 LED (red) for module error (ERR) 1 LED (green/red) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status) |
| module format | Standard |
| marking | CE |
|---|---|
| directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| IP degree of protection | IP20 |
| ambient air temperature for operation | 0…60 °C |
| ambient air temperature for storage | -40…85 °C |
| operating altitude | <= 2000 m |
| maximum altitude transport | 3000 m |
| overvoltage category | II |
| relative humidity | 95 % without condensation |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 259 g |
| Package 1 Height | 5.5 cm |
| Package 1 width | 11 cm |
| Package 1 Length | 11.5 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Weight | 4.2 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
