Description

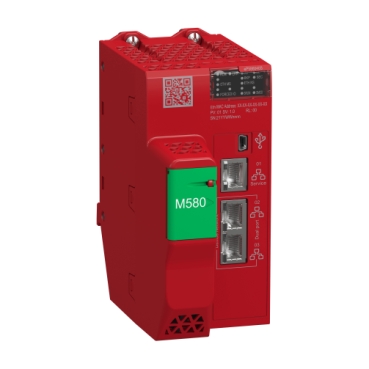

| range of product | Modicon M580 |
|---|---|
| product or component type | Processor module |
| impregnation material | Conformal coated |
| number of racks | 8 |
|---|---|
| Local I/O processor capacity (discrete) | 6144 I/O |
| Local I/O processor capacity (analog) | 1536 I/O |
| Number of application specific channel (local rack) | 216 |
| application specific I/O | Counter Motion control SSI encoder Accurate time stamping Serial link HART |
| checks | Process control Safety control |
| control channels | Programmable loops |
| integrated connection type | 1 Ethernet TCP/IP for service port 2 Ethernet TCP/IP for device network USB type mini B 1 Ethernet |
| number of remote I/O station | 31 – 2 rack(s) per remote drop |
| number of distributed equipment | 64 |
| Number of CIP safety IO devices | 128 |
| communication module processor capacity | 4 Ethernet communication module 24 AS-Interface module |
| communication service | RIO scanner DIO scanner |
| memory description | Expandable flash, 4 GB for data storage Integrated RAM, 10 kB for system memory Integrated RAM, 64 MB for program and data Integrated RAM, 16 MB for program safety Integrated RAM, 1024 kB for data safety |
| application structure | 1 master task 1 periodic fast task 1 periodic safe task |
| number of instructions per ms | 60 Kinst/ms 100 % Boolean 40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic |
| current consumption | 295 mA at 24 V DC |
| MTBF reliability | 731000 H |
| marking | CE |
| vibration resistance | 3 gn |
|---|---|
| shock resistance | 15 gn |
| ambient air temperature for operation | -25…60 °C |
| ambient air temperature for storage | -40…85 °C |
| operating altitude | 0…2000 m 2000…5000 m with derating factor |
| relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| directives | 2014/30/EU – electromagnetic compatibility 2006/42/EC – machinery 2014/34/EU – ATEX directive |
| product certifications | CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 TÜV |
| standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0 |
| environmental characteristic | Hazardous location class I division 2 Gas resistant class Gx conforming to ISA S71.04 Gas resistant class 3C4 conforming to IEC 60721-3-3 Dust resistant class 3S4 conforming to IEC 60721-3-3 Sand resistant class 3S4 conforming to IEC 60721-3-3 Salt resistant level 2 conforming to IEC 68252 Mold growth resistant class 3B2 conforming to IEC 60721-3-3 Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 |
| protective treatment | Conformal coating |
| safety level | SIL 3 conforming to IEC 61508 SIL 3 conforming to IEC 61511 SILCL 3 conforming to IEC 62061 SILCL 3 conforming to ISO 13849-1 category 4 SIL 4 conforming to EN 50126 SIL 4 conforming to EN 50128 SIL 4 conforming to EN 50129 |
| supply | Internal power supply via rack |
| status LED | 1 LED (green) processor running (RUN) 1 LED (red) processor or system fault (ERR) 1 LED (red) I/O module fault (I/O) 1 LED (green) download in progress (DL) 1 LED (red) memory card or CPU flash fault (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) Eth NS (Ethernet network status) 1 LED (green) processor in safety mode (SRUN) 1 LED (green) processor in maintenance mode (SMOD) 1 LED (red) I/O values overrided by user (FORCED IO) |
| net weight | 0.849 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 880.0 g |
| Package 1 Height | 9 cm |
| Package 1 width | 18 cm |
| Package 1 Length | 25 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Weight | 5.734 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
