Description
| range of product | Modicon M580 |
|---|---|

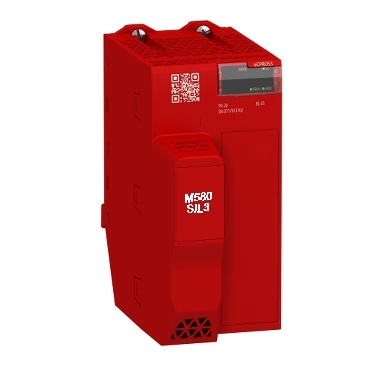

| product or component type | Processor module |
| current consumption | 295 mA at 24 V DC |
|---|---|
| MTBF reliability | 946000 H |
| marking | CE |
| vibration resistance | 3 gn |
|---|---|
| shock resistance | 15 gn |
| ambient air temperature for operation | -25…60 °C |
| ambient air temperature for storage | -40…85 °C |
| operating altitude | 0…2000 m 2000…5000 m with derating factor |
| relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| directives | 2014/30/EU – electromagnetic compatibility 2006/42/EC – machinery 2014/34/EU – ATEX directive |
| product certifications | CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 TÜV |
| standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0 |
| environmental characteristic | Hazardous location class I division 2 Gas resistant class Gx conforming to ISA S71.04 Gas resistant class 3C4 conforming to IEC 60721-3-3 Dust resistant class 3S4 conforming to IEC 60721-3-3 Sand resistant class 3S4 conforming to IEC 60721-3-3 Salt resistant level 2 conforming to IEC 68252 Mold growth resistant class 3B2 conforming to IEC 60721-3-3 Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 |
| protective treatment | Conformal coating |
| safety level | SIL 3 PL = e |
| supply | Internal power supply via rack |
| status LED | 1 LED (green)processor running (RUN) 1 LED (red)processor or system fault (ERR) 1 LED (green)download in progress (DL) 1 LED (green)processor in safety mode (SRUN) 1 LED (green)processor in maintenance mode (SMOD) |
| net weight | 0.849 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 830.0 g |
| Package 1 Height | 9 cm |
| Package 1 width | 18.9 cm |
| Package 1 Length | 25.2 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Weight | 5.452 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
