Description
| range of product | Modicon X80 |
|---|---|

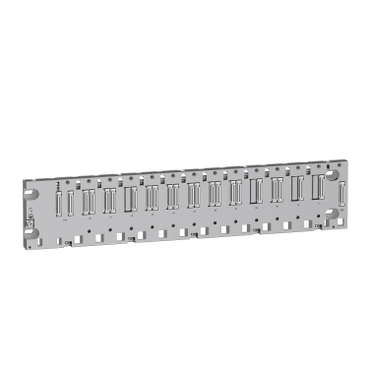

| Accessory / separate part type | Rack |
| number of slots | 8 bus X + Ethernet 4 bus X |
|---|---|
| product compatibility | I/O module Specific application module BMXCPS power supply BMX processor BME processor |
| power consumption in W | 283 mW 3.3 V DC 3.9 W 24 V DC |
| electrical connection | 1 connector (XBE) expansion module |
| fixing mode | By 4 M6 screws, mounting on plate By 4 screws – diameter: 4.32…6.35 mm, mounting on panel |
| current consumption | 164 mA at 24 V DC 86 mA at 3.3 V DC |
| MTBF reliability | 1500000 H |
| net weight | 1.377 kg |
| IP degree of protection | IP20 |
|---|---|
| ambient air temperature for operation | 0…60 °C |
| relative humidity | 5…95 % without condensation |
| directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.375 kg |
| Package 1 Height | 5.5 cm |
| Package 1 width | 15.0 cm |
| Package 1 Length | 58.5 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 8 |
| Package 2 Weight | 11.724 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
