Description
| Range of Product | Modicon MC80 |
|---|---|

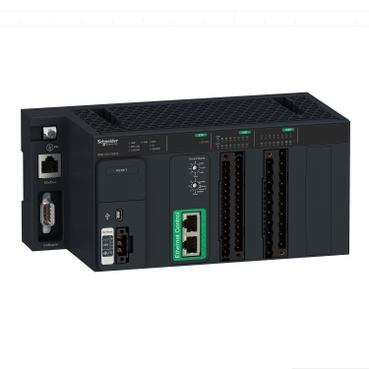

| Product or Component Type | Processor module |
| Product Specific Application | Thermo solar – tower power |
| Product compatibility | BMXFTB28… terminal block high-speed counter module BMXFTB20… terminal block discrete I/O module |
|---|---|
| [Us] rated supply voltage | 24 V – 15…20 % DC |
| Current Consumption | <= 700 mA |
| Isolation voltage | 1500 V DC |
| Memory description | Internal RAM 3840 kB Internal RAM 128 kB data Internal RAM 3590 kB program constants and symbols |
| Execution time per instruction | 0.06 µs Boolean 0.08 µs mixed |
| Realtime clock | With |
| Function available | Memory retention without battery |
| Communication port protocol | 1 non isolated serial link RJ45 RS485/RS232 0.3…19.2 kbit/s 247 1 CANopen SUB-D 9 20 kbit/s…1 Mbit/s 16 2 Ethernet RJ45 10/100 Mbit/s |
| Integrated connection type | USB port mini B USB |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Bus length | 0.0000000000…32.8 ft (0…10 m) serial link non isolated 0.0000000000…49.2 ft (0…15 m) serial link non isolated 0.0000000000…3280.8 ft (0…1000 m) serial link isolated with external isolation tap 0.0000000000…65.6 ft (0…20 m) 1 Mbit/s CANopen 0.0000000000…8202.10 ft (0…2500 m) 20 kbit/s CANopen 0.0000000000…328.08 ft (0…100 m) Ethernet |
| Communication service | Read/write variables Modbus Diagnostics Modbus Send/receive character string character mode Process Data Object (PDO) CANopen Service Data Object (SDO) CANopen FDR client Ethernet SNMP Ethernet RSTP support Ethernet |
| Number of counter | 2 |
| Maximum counting frequency | 60000 Hz |
| Counter functions | Count events Ratio count Frequency meter One shot counting Measure time periods Loop (modulo) counting Freelarge counting |
| Number of inputs for counter | 3 auxiliary 3 high speed |
| Logic input for counter | Positive (sink) |
| Sensor power supply for counter | 19…30 V DC |
| Input compatibility for counter | 24 V 2-wire/3-wire proximity sensor incremental encoder with push-pull outputs, 10…30 V totem pole 24 V 2/3-wire sensor PNP |
| Number of outputs for counter | 2 positive |
| Nominal output current for counter | 0.5 A per output |
| Discrete input number | 8 positive logic (sink) |
| Discrete input type | Type 3 |
| Discrete input current | 5 mA |
| Discrete input voltage | 19…30 V DC |
| Discrete output number | 8 positive |
| Discrete output current | 500 mA per output |
| Discrete output voltage | 19…30 V DC |
| Protection type | Overload protection output Short-circuit protection output |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
|---|---|
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 0…95 % |
| Vibration resistance | 3 gn |
| Marking | CE |
| Standards | CSA C22.2 No 213 Class I Division 2 Group C CSA C22.2 No 142 CSA C22.2 No 213 Class I Division 2 Group D UL 508 CSA C22.2 No 213 Class I Division 2 Group A CSA C22.2 No 213 Class I Division 2 Group B IEC 61131-2 |
| Product Certifications | RCM |
| Category | US1PC3418160 |
|---|---|
| Discount Schedule | PC34 |
| GTIN | 3606480711404 |
| Returnability | No |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.70 in (14.48 cm) |
| Package 1 Width | 4.90 in (12.45 cm) |
| Package 1 Length | 10.70 in (27.18 cm) |
| Package 1 Weight | 2.6 lb(US) (1.2 kg) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 11.8 in (30 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 14.93 lb(US) (6.77 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 31.5 in (80 cm) |
| Package 3 Width | 31.5 in (80 cm) |
| Package 3 Length | 23.6 in (60 cm) |
| Package 3 Weight | 134.83 lb(US) (61.16 kg) |
