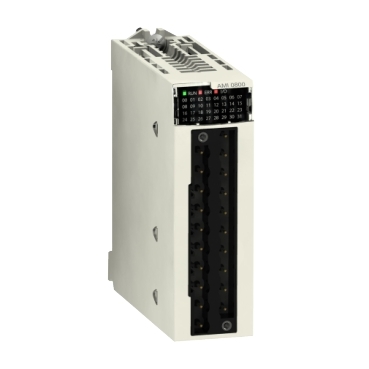

Description
| range of product | Modicon X80 |
|---|---|
| product or component type | Analog input module |
| electrical connection | 28 ways 1 connector |
| Isolation between channels | Isolated |
| input level | High level |
| analogue input number | 8 |
| analogue input type | Current +/- 20 mA Current 0…20 mA Current 4…20 mA Voltage +/- 10 V Voltage +/- 5 V Voltage 0…10 V Voltage 0…5 V Voltage 1…5 V |
| analog/digital conversion | 16 bits |
|---|---|
| analogue input resolution | 15 bits + sign |
| permitted overload on inputs | +/- 30 mA 0…20 mA +/- 30 mA 4…20 mA +/- 30 V +/- 10 V +/- 30 V +/- 5 V +/- 30 V 0…10 V +/- 30 V 0…5 V +/- 30 V 1…5 V +/- 30 mA +/- 20 mA |
| input impedance | 10 MOhm in voltage mode 250 Ohm + 3.6…50 Ohm internal protective resistor in current mode |
| precision of internal conversion resistor | 0.1 % – 15 ppm/°C |
| type of filter | First order digital filtering |
| fast read cycle time | 1 ms + 1 ms x number of channels used |
| nominal read cycle time | 9 ms for 8 channels |
| measurement error | <= 0.1 % of full scale +/- 10 V 0…60 °C <= 0.1 % of full scale +/- 5 V 0…60 °C <= 0.1 % of full scale 0…10 V 0…60 °C <= 0.1 % of full scale 0…5 V 0…60 °C <= 0.1 % of full scale 1…5 V 0…60 °C <= 0.3 % of full scale +/- 20 mA 0…60 °C <= 0.3 % of full scale 0…20 mA 0…60 °C <= 0.3 % of full scale 4…20 mA 0…60 °C 0.15 % of full scale +/- 20 mA 25 °C 0.15 % of full scale 0…20 mA 25 °C 0.15 % of full scale 4…20 mA 25 °C 0.075 % of full scale +/- 10 V 25 °C 0.075 % of full scale 0…10 V 25 °C 0.075 % of full scale 0…5 V 25 °C 0.075 % of full scale 1…5 V 25 °C 0.075 % of full scale +/- 5 V 25 °C |
| temperature drift | 30 ppm/°C +/- 10 V 30 ppm/°C +/- 5 V 30 ppm/°C 0…10 V 30 ppm/°C 0…5 V 30 ppm/°C 1…5 V 50 ppm/°C +/- 20 mA 50 ppm/°C 0…20 mA 50 ppm/°C 4…20 mA |
| minimum crosstalk attenuation | 80 dB |
| Common mode rejection | 80 dB |
| digital value format | – 32768 to + 32767 in maximum user scale +/- 10000 by default |
| isolation voltage | 300 V DC between channels 1400 V DC between channels and ground 1400 V DC between channels and bus |
| measurement resolution | 0.36 mV +/- 10 V 0.36 mV 0…10 V 0.36 mV 0…5 V 0.36 mV 1…5 V 0.36 mV +/- 5 V 1.4 µA +/- 20 mA 1.4 µA 0…20 mA 1.4 µA 4…20 mA |
| maximum conversion value | +/- 11.4 V +/- 10 V +/- 11.4 V 0…10 V +/- 11.4 V 0…5 V +/- 11.4 V 1…5 V 0…30 mA +/- 20 mA 0…30 mA 0…20 mA 0…30 mA 4…20 mA 0…30 mA +/- 5 V |
| operating altitude | 0…2000 m 2000…5000 m with derating factor |
| status LED | 1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O |
| Net weight | 0.165 kg |
| power consumption in W | 1.06 W 24 V DC typical 1.50 W 24 V DC maximum 0.32 W 3.3 V DC typical 0.48 W 3.3 V DC maximum |
| vibration resistance | 3 gn |
|---|---|
| shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| product certifications | CE RCM CSA EAC Merchant Navy UL |
| Standards | EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 11.0 cm |
| Package 1 Length | 11.5 cm |
| Package 1 Weight | 160.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 2.668 kg |
