Sale!

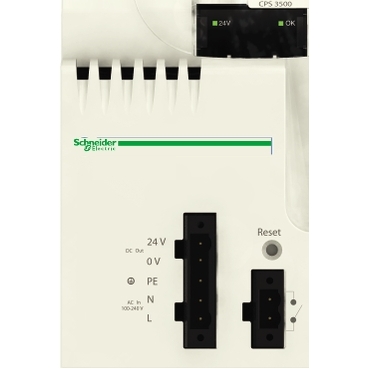

BMXCPS3500H

Original price was: $ 465.00.Current price is: $ 358.00.

In stock

Category:

Description

Main
range of product Modicon X80
product or component type Power supply module
backplane compatibility Not compatible with BMEXBP..02
product specific application For severe environments
primary voltage 100…240 V
supply circuit type AC
secondary power 15 W 3.3 V DC at 0…60 °C I/O module logic power supply
31.2 W 24 V DC at 0…60 °C I/O module power supply and processor
11.3 W 3.3 V DC at -25…70 °C I/O module logic power supply
23.4 W 24 V DC at -25…70 °C I/O module power supply and processor
21.6 W 24 V DC at 0…60 °C sensor power supply
16.2 W 24 V DC at -25…70 °C sensor power supply
Complementary
primary voltage limit 85…264 V
network frequency 50/60 Hz
network frequency limits 47…63 Hz
apparent power 0.07 kVA
input current 0.52 A 240 V
1.04 A 115 V
inrush current 30 A 120 V
60 A 240 V
I²t on activation 1 A².s 120 V
3 A².s 240 V
It on activation 0.05 A.s 120 V
0.07 A.s 240 V
protection type Internal fuse not accessible for primary circuit
Overload protection for secondary circuit
Overvoltage protection for secondary circuit
Short-circuit protection for secondary circuit
current at secondary voltage 0.9 A 24 V DC sensor power supply
1.3 A 24 V DC I/O module power supply and processor
4.5 A 3.3 V DC I/O module logic power supply
maximum power dissipation in W 8.5 W
status LED 1 LED (green) rack voltage OK
1 LED (green) sensor voltage
control type RESET push-button cold restart
electrical connection 1 connector 2 pin(s)alarm relay
1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor
insulation resistance >= 100 MOhm primary/ground
>= 100 MOhm primary/secondary
net weight 0.36 kg
Environment
immunity to microbreaks 1 ms
dielectric strength 1500 V primary/secondary I/O module logic power supply
1500 V primary/secondary I/O module power supply and processor
2300 V primary/secondary sensor power supply
1500 V primary/ground
500 V 24 V sensor output/ground
vibration resistance 3 gn
shock resistance 30 gn
IP degree of protection IP20
directives 2014/35/EU – low voltage directive
2014/30/EU – electromagnetic compatibility
product certifications CE
UL
CSA
RCM
EAC
Merchant Navy
standards EN 61131-2
EN/IEC 61010-2-201
UL 61010-2-201
CSA C22.2 No 61010-2-201
IACS E10
EN/IEC 61000-6-5, interface type 1 and type 2
EN/IEC 61850-3, location G
environmental characteristic Gas resistant class Gx conforming to ISA S71.04
Gas resistant class 3C4 conforming to IEC 60721-3-3
Dust resistant class 3S4 conforming to IEC 60721-3-3
Sand resistant class 3S4 conforming to IEC 60721-3-3
Salt resistant level 2 conforming to IEC 68252
Mold growth resistant class 3B2 conforming to IEC 60721-3-3
Fungal spore resistant class 3B2 conforming to IEC 60721-3-3
Hazardous location class I division 2
ambient air temperature for storage -40…85 °C
ambient air temperature for operation -25…70 °C
relative humidity 5…95 % at 55 °C without condensation
protective treatment Conformal coating
operating altitude 0…2000 m
2000…5000 m with derating factor
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13.27 cm
Package 1 Width 15.449 cm
Package 1 Length 15.68 cm
Package 1 Weight 500.0 g
Unit Type of Package 2 S04
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 7.16 kg
