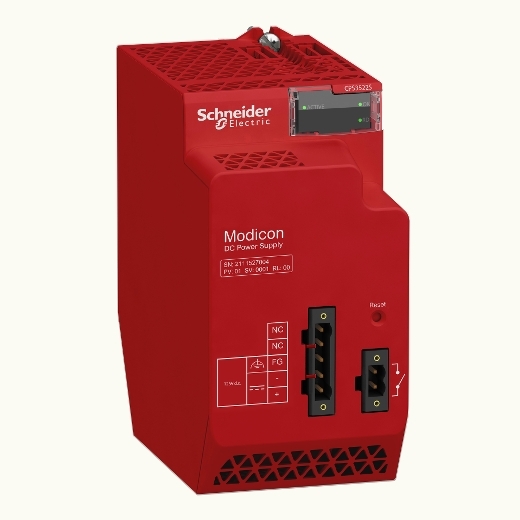

redundant power supply module X80 – 125 V DC – Safety BMXCPS3522S

Main
range of product	Modicon X80 BMXCPS3522S
product or component type	Power supply module
backplane compatibility	All backplane
advanced diagnostics available via network	Redundancy information Redundancy test Remaining lifetime Temperature sensing Uptime duration
primary voltage	125 V
supply circuit type	DC
secondary power	18 W 3.3 V DC at -25…60 °C I/O module logic power supply 40 W 24 V DC at -25…60 °C I/O module power supply and processor if 3.3 V not loaded

Complementary
primary voltage limit	100…150 V
input current	600 A 125 V
inrush current	60 A 125 V
I²t on activation	2.5 A².s 125 V
It on activation	0.09 A.s 125 V
MTBF reliability	871500 H
protection type	Internal fuse not accessible for primary circuit Overload protection for secondary circuit Overvoltage protection for secondary circuit Short-circuit protection for secondary circuit
current at secondary voltage	1.67 A 24 V DC I/O module logic power supply 5 A 3.3 V DC I/O module power supply and processor
maximum power dissipation in W	8.5 W
status LED	1 LED (green)presence of voltages (OK) 1 LED (green)redundancy OK 1 LED (green)power supply status
control type	RESET push-button cold restart
electrical connection	1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth
insulation resistance	>= 100 MOhm primary/ground >= 100 MOhm primary/secondary
net weight	0.64 kg

Environment
immunity to microbreaks	1 ms
dielectric strength	1500 V primary/secondary I/O module logic power supply 1500 V primary/secondary I/O module power supply and processor 2300 V primary/secondary sensor power supply 1500 V primary/ground
vibration resistance	3 gn
shock resistance	15 gn
IP degree of protection	IP20
directives	2014/30/EU – electromagnetic compatibility 2006/42/EC – machinery 2014/34/EU – ATEX directive
product certifications	CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 TÜV
standards	EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0
environmental characteristic	Hazardous location class I division 2 Gas resistant class Gx conforming to ISA S71.04 Gas resistant class 3C4 conforming to IEC 60721-3-3 Dust resistant class 3S4 conforming to IEC 60721-3-3 Sand resistant class 3S4 conforming to IEC 60721-3-3 Salt resistant level 2 conforming to IEC 68252 Mold growth resistant class 3B2 conforming to IEC 60721-3-3 Fungal spore resistant class 3B2 conforming to IEC 60721-3-3
ambient air temperature for storage	-40…85 °C
ambient air temperature for operation	-25…60 °C
relative humidity	5…95 % at 55 °C without condensation
protective treatment	Conformal coating
operating altitude	0…2000 m 2000…5000 m with derating factor
