Description

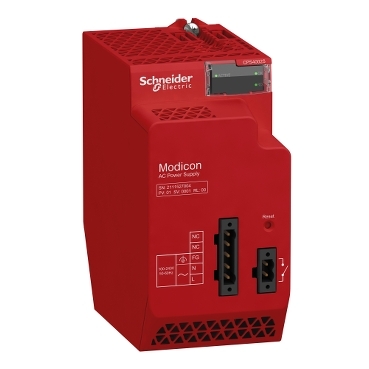

| range of product | Modicon X80 |
|---|---|
| product or component type | Power supply module |
| backplane compatibility | All backplane |
| advanced diagnostics available via network | Redundancy information Redundancy test Temperature sensing Remaining lifetime Uptime duration |
| primary voltage | 100…240 V |
| supply circuit type | AC |
| secondary power | 15 W 3.3 V DC at -25…60 °C I/O module logic power supply 40 W 24 V DC at -25…60 °C I/O module power supply and processor if 3.3 V not loaded |
| primary voltage limit | 85…264 V |
|---|---|
| network frequency | 50/60 Hz |
| network frequency limits | 47…63 Hz |
| apparent power | 0.13 kVA |
| input current | 0.55 A 230 V 1.1 A 115 V |
| inrush current | 30 A 115 V 60 A 230 V |
| I²t on activation | 1 A².s 115 V 4 A².s 230 V |
| It on activation | 0.1 A.s 115 V 0.15 A.s 230 V |
| MTBF reliability | 770880 H |
| protection type | Internal fuse not accessible for primary circuit Overload protection for secondary circuit Overvoltage protection for secondary circuit Short-circuit protection for secondary circuit |
| current at secondary voltage | 4.5 A 3.3 V DC I/O module logic power supply 1.67 A 24 V DC I/O module power supply and processor |
| maximum power dissipation in W | 8.5 W |
| status LED | 1 LED (green) presence of voltages (OK) 1 LED (green) redundancy OK 1 LED (green) power supply status |
| control type | RESET push-button cold restart |
| electrical connection | 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth |
| insulation resistance | >= 100 MOhm primary/ground >= 100 MOhm primary/secondary |
| net weight | 0.51 kg |
| immunity to microbreaks | 10 ms |
|---|---|
| dielectric strength | 1500 V primary/secondary I/O module logic power supply 1500 V primary/secondary I/O module power supply and processor 2300 V primary/secondary sensor power supply 1500 V primary/ground 500 V 24 V sensor output/ground |
| vibration resistance | 3 gn |
| shock resistance | 15 gn |
| IP degree of protection | IP20 |
| directives | 2014/30/EU – electromagnetic compatibility 2006/42/EC – machinery 2014/34/EU – ATEX directive |
| product certifications | CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 TÜV |
| standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0 |
| environmental characteristic | Hazardous location class I division 2 Gas resistant class Gx conforming to ISA S71.04 Gas resistant class 3C4 conforming to IEC 60721-3-3 Dust resistant class 3S4 conforming to IEC 60721-3-3 Sand resistant class 3S4 conforming to IEC 60721-3-3 Salt resistant level 2 conforming to IEC 68252 Mold growth resistant class 3B2 conforming to IEC 60721-3-3 Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 |
| ambient air temperature for storage | -40…85 °C |
| ambient air temperature for operation | -25…60 °C |
| relative humidity | 5…95 % at 55 °C without condensation |
| protective treatment | Conformal coating |
| operating altitude | 0…2000 m 2000…5000 m with derating factor |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 640.0 g |
| Package 1 Height | 18.0 cm |
| Package 1 width | 25.0 cm |
| Package 1 Length | 9.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 48 |
| Package 2 Weight | 43.2 kg |
| Package 2 Height | 60.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 70.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 6 |
| Package 3 Weight | 4.4 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
