Description

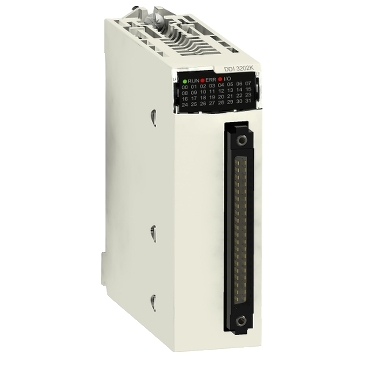

| range of product | Modicon X80 |
|---|---|
| product or component type | Discrete input module |
| discrete input number | 32 |
| discrete input type | Isolated |
| input type | Current sink (logic positive) |
| discrete input voltage | 24 V DC, discrete input logic: positive |
| discrete input current | 2.5 mA |
| input compatibility | With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 Type 1 |
|---|---|
| Sensor power supply | 19…30 V |
| current state 1 guaranteed | >= 2 mA |
| current state 0 guaranteed | <= 0.5 mA |
| input impedance | 9600 Ohm |
| insulation resistance | > 10 MOhm 500 V DC |
| power dissipation in W | 3.9 W |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| paralleling of inputs | No |
| typical current consumption | 121 mA at 3.3 V DC |
| MTBF reliability | 696320 H |
| protection type | 1 external fuse per group of channel0.5 A fast blow reverse polarity protection |
| voltage detection threshold | < 14 V DC sensor fault > 18 V DC sensor OK |
| status LED | 1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O |
| net weight | 0.112 kg |
| IP degree of protection | IP20 |
|---|---|
| directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| dielectric strength | 1500 V AC at 50/60 Hz 1 minute, primary/secondary 500 V DC 1 minute, between group of channels |
| vibration resistance | 3 gn |
| shock resistance | 30 gn |
| ambient air temperature for storage | -40…85 °C |
| ambient air temperature for operation | 0…60 °C |
| relative humidity | 5…95 % at 55 °C without condensation |
| operating altitude | 0…2000 m 2000…5000 m with derating factor |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 154.4 g |
| Package 1 Height | 5.373 cm |
| Package 1 width | 10.974 cm |
| Package 1 Length | 11.554 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Weight | 2.5 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
