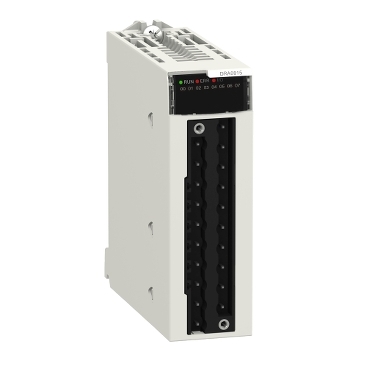

BMXDRA0815

Original price was: $ 228.00.Current price is: $ 176.00.

In stock

Category:

Description

Main
range of product Modicon X80
product or component type Relay discrete output module
discrete output number 8 conforming to EN/IEC 61131-2
discrete output logic Positive
discrete output voltage 24…240 V 19…264 V AC
24…125 V 5…150 V DC
Complementary
electrical connection 20 ways terminal block
network frequency 50/60 Hz
network frequency limits 47…63 Hz
Sensor power supply 5…150 V
19…264 V
[Ith] conventional free air thermal current 3 A
insulation resistance > 10 MOhm 500 V DC
power dissipation in W 3.6 W
response time on output <= 10 ms activation
<= 13 ms deactivation
typical current consumption 40 mA at 3.3 V DC
101 mA at 24 V DC
MTBF reliability 2683411 H
protection type External short-circuit protection
External overload protection
External overvoltage protection, inductive AC network
External overvoltage protection, inductive DC network
output overload protection Use 1 fast blow fuse per channel or group of channel
output overvoltage protection Use discharge diode on each output DC
Use RC circuit on each output AC
Use ZNO surge limiter on each output AC
output short-circuit protection Use 1 fast blow fuse per channel or group of channel
minimum switching current 1 mA 5 V DC
electrical durability AC-12: 200000 cycles at 48 VA 24 V at 0…60 °C
AC-12: 300000 cycles at 48 VA 48 V at 0…60 °C
AC-12: 150000 cycles at 96 VA 48 V at 0…60 °C
AC-12: 300000 cycles at 110 VA 100…120 V at 0…60 °C
AC-12: 150000 cycles at 220 VA 100…120 V at 0…60 °C
AC-12: 300000 cycles at 220 VA 200…250 V at 0…60 °C
AC-12: 150000 cycles at 500 VA 200…250 V at 0…60 °C
AC-15: 700000 cycles at 10 VA 24 V at 0…60 °C (load factor 0.4)
AC-15: 500000 cycles at 24 VA 24 V at 0…60 °C (load factor 0.4)
AC-15: 200000 cycles at 48 VA 24 V at 0…60 °C (load factor 0.4)
AC-15: 700000 cycles at 10 VA 48 V at 0…60 °C (load factor 0.4)
AC-15: 500000 cycles at 24 VA 48 V at 0…60 °C (load factor 0.4)
AC-15: 300000 cycles at 48 VA 48 V at 0…60 °C (load factor 0.4)
AC-15: 100000 cycles at 96 VA 48 V at 0…60 °C (load factor 0.4)
AC-15: 1000000 cycles at 10 VA 100…120 V at 0…60 °C (load factor 0.4)
AC-15: 300000 cycles at 50 VA 100…120 V at 0…60 °C (load factor 0.4)
AC-15: 200000 cycles at 110 VA 100…120 V at 0…60 °C (load factor 0.4)
AC-15: 70000 cycles at 220 VA 100…120 V at 0…60 °C (load factor 0.4)
AC-15: 1000000 cycles at 10 VA 200…250 V at 0…60 °C (load factor 0.4)
AC-15: 500000 cycles at 50 VA 200…250 V at 0…60 °C (load factor 0.4)
AC-15: 200000 cycles at 110 VA 200…250 V at 0…60 °C (load factor 0.4)
AC-15: 150000 cycles at 220 VA 200…250 V at 0…60 °C (load factor 0.4)
DC-12: 200000 cycles at 24 W 24 V at 0…60 °C
DC-12: 150000 cycles at 48 W 24 V at 0…60 °C
DC-12: 150000 cycles at 40 W 48…60 V at 0…60 °C
DC-12: 100000 cycles at 45 W 100…125 V at 0…60 °C
DC-13: 100000 cycles at 10 W 24 V at 0…60 °C
DC-13: 60000 cycles at 24 W 24 V at 0…60 °C
DC-13: 40000 cycles at 48 W 24 V at 0…60 °C
DC-13: 40000 cycles at 40 W 48…60 V at 0…60 °C
DC-13: 100000 cycles at 15 W 100…125 V at 0…60 °C
status LED 1 LED (green) RUN
1 LED per channel (green) channel diagnostic
1 LED (red) ERR
1 LED (red) I/O
net weight 0.169 kg
Environment
IP degree of protection IP20
dielectric strength 1780 V AC at 50/60 Hz 1 min
vibration resistance 3 gn
shock resistance 30 gn
ambient air temperature for storage -40…85 °C
ambient air temperature for operation 0…60 °C
relative humidity 0…95 % at 60 °C without condensation
operating altitude 0…2000 m
2000…5000 m with derating factor
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 11.0 cm
Package 1 Length 11.5 cm
Package 1 Weight 202.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 15
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.03 kg
