Sale!

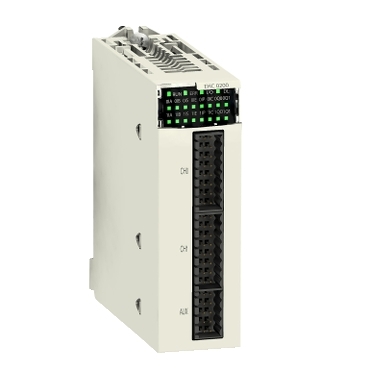

BMXEHC0200

Original price was: $ 1,096.00.Current price is: $ 845.00.

In stock

Category:

Description

Main
range of product Modicon M340 automation platform
product or component type Counter module
Number of channels 2
maximum counting frequency 60000 Hz
number of inputs 6
input compatibility 19.2…30 V 2-wire/3-wire proximity sensor
incremental encoder with push-pull outputs, 10…30 V totem pole
input voltage 24 V DC type 3
number of outputs 2
output voltage 24 V DC
Complementary
counter functions Loop (modulo) counting
Width modulation
Down counting
Measure time periods
Ratio count
Count events
32-bit counter counting
Frequency meter
cycle time 1 ms
isolation voltage 1500 V for 60 s
input type 3 auxiliary input
3 high speed
input voltage limits 30 V
input current 2 mA at 11 V
voltage state 1 guaranteed 11…30 V
current state 1 guaranteed >= 6 mA
voltage state 0 guaranteed < 5 V
current state 0 guaranteed <= 1.5 mA
discrete output logic Positive or negative configurable
maximum output current 2 A per module
0.5 A per output
output voltage limits 19.2…30 V
maximum load current 1 A per module
0.5 A per output
maximum leakage current 0.1 mA at state 0
maximum voltage drop <3 V at state 1
output overload protection Integrated
output short-circuit protection 1.5 A integrated
overlap time 0.2 ms
electrical connection 1 connector with 10 pins for wiring auxiliary input and sensor power supply
1 connector with 16 pins for wiring the sensors of counter 0
1 connector with 16 pins for wiring the sensors of counter 1
current consumption 200 mA at 3.3 V DC bus
40 mA at 24 V DC rack
80 mA at 24 V DC sensor
module format Standard
net weight 0.112 kg
Environment
ambient air temperature for operation 0…60 °C
relative humidity 10…95 % without condensation
IP degree of protection IP20
directives 2014/35/EU – low voltage directive
2014/30/EU – electromagnetic compatibility
protective treatment TC
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.4 cm
Package 1 Width 11.0 cm
Package 1 Length 11.6 cm
Package 1 Weight 142.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 15
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.4 kg
