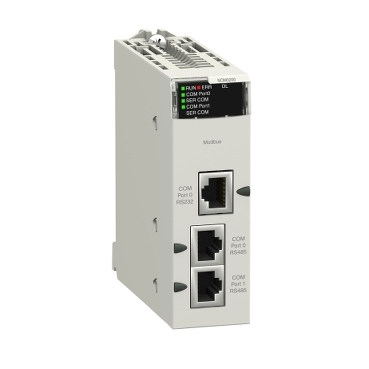

Description
| range of product | Modicon X80 |
|---|---|
| product or component type | Serial links module |
| product specific application | For severe environments |
| concept | Serial link |
| integrated connection type | RS232 RJ45 115.2 kbit/s 8 wires RS485 RJ45 57.6 kbit/s 1 twisted pair |
| protective treatment | Conformal coating |
| supply | Internal power supply via rack |
|---|---|
| marking | CE |
| local signalling | 1 LED (red) for module fault (ERR) 1 LED (green) for module running (RUN) 1 LED (green) for activity on the serial link (SER COM 0) 1 LED (green) for activity on the serial link (SER COM 1) |
| current consumption | 80 mA at 24 V DC |
| module format | Standard |
| net weight | 0.23 kg |
| ambient air temperature for operation | -25…70 °C |
|---|---|
| relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility 2014/34/EU – ATEX directive |
| product certifications | CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 |
| standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0 |
| environmental characteristic | Gas resistant class Gx conforming to ISA S71.04 Gas resistant class 3C4 conforming to IEC 60721-3-3 Dust resistant class 3S4 conforming to IEC 60721-3-3 Sand resistant class 3S4 conforming to IEC 60721-3-3 Salt resistant level 2 conforming to IEC 68252 Mold growth resistant class 3B2 conforming to IEC 60721-3-3 Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 Hazardous location class I division 2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 11.2 cm |
| Package 1 Length | 11.8 cm |
| Package 1 Weight | 229.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.682 kg |
