Description

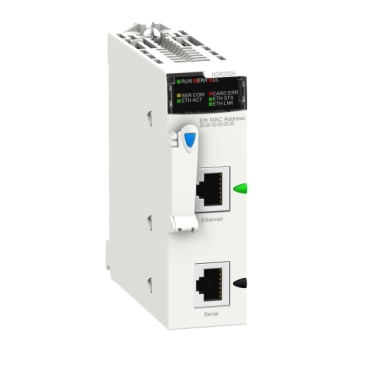

Ethernet / Serial RTU module – 2 x RJ45
| range of product | Modicon X80 |
|---|---|
| product or component type | Ethernet/Serial RTU module |
| product specific application | For standard & severe environments |
| concept | Transparent Ready |
| integrated connection type | Ethernet RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 Serial RS232/485 RJ45 300/38400 bit/s 1 twisted pair transparent ready class C30 |
| protective treatment | Conformal coating |
| communication service | Bandwidth management Modbus TCP messaging DNP3/DNP3 IP protocol IEC 60870-5 -101/-104 protocol Time stamped events management External modem management (serial, PSTN, GSM, GPRS/3G) Data logging in CSV files Email/SMS notifications Web server, rack viewer, data editor BootP, DHCP, FDR client SMTP server, FTP client/server, NTP client, SNMP agent, Automatic events backup on power loss Multi-protocols support in a single module (master and slave) Transparent events routing from remote slaves to SCADA |
|---|---|
| port Ethernet | 10BASE-T/100BASE-TX |
| memory description | Supplied Flash SD memory card (BMXRWS128MWF) 128000 kB |
| memory usage | Activating the standard web server User web pages storage Data logging CSV files storage |
| supply | Internal power supply via rack |
| marking | CE |
| local signalling | 1 LED (green) for activity on Ethernet network (ETH ACT) 1 LED (green) for processor running (RUN) 1 LED (green) for status of Ethernet network (ETH STS) 1 LED (red) for memory card fault (CARD ERR) 1 LED (red) for processor or system fault (ERR) 1 LED (red) for download in progress (DL) 1 LED (yellow) for serial communication (SER COM) 1 LED (green) for data rate (ETH LINK) |
| current consumption | 95 mA at 24 V DC |
| module format | Standard |
| net weight | 0.2 kg |
| ambient air temperature for operation | -25…70 °C |
|---|---|
| relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility 2014/34/EU – ATEX directive |
| product certifications | CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 |
| standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0 |
| environmental characteristic | Gas resistant class Gx conforming to ISA S71.04 Gas resistant class 3C4 conforming to IEC 60721-3-3 Dust resistant class 3S4 conforming to IEC 60721-3-3 Sand resistant class 3S4 conforming to IEC 60721-3-3 Salt resistant level 2 conforming to IEC 68252 Mold growth resistant class 3B2 conforming to IEC 60721-3-3 Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 Hazardous location class I division 2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 300.0 g |
| Package 1 Height | 5.5 cm |
| Package 1 width | 11.0 cm |
| Package 1 Length | 11.6 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Weight | 4.8 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
