Description

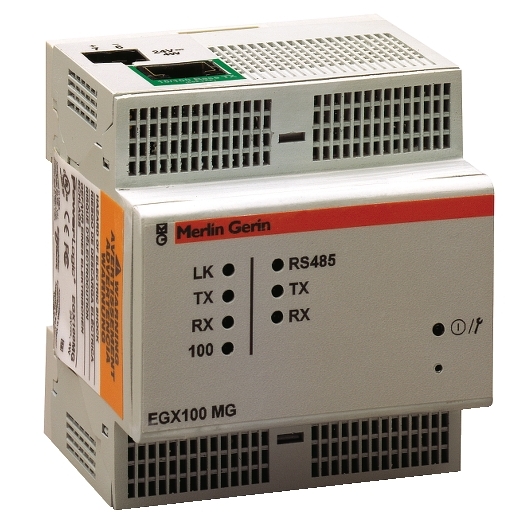

ethernet gateway – PowerLogic EGX100 – 1 Ethernet port – 24 V DC EGX100MG

Complementary
number of port	1
device connection	Ethernet port protocol: FTP 10/100 Mbit/s Ethernet port protocol: HTTP 10/100 Mbit/s Ethernet port protocol: Modbus TCP/IP 10/100 Mbit/s Ethernet port protocol: SNMP 10/100 Mbit/s Serial port protocol: Modbus RTU and ASCII interface: RS232 38400/57600 bauds Serial port protocol: Modbus RTU and ASCII interface: RS485 38400/57600 bauds Serial port protocol: PowerLogic (SY/MAX) interface: RS232 38400/57600 bauds Serial port protocol: PowerLogic (SY/MAX) interface: RS485 38400/57600 bauds
[Us] rated supply voltage	24 V DC
distributed supply voltage	PoE power supply 3
mounting support	DIN rail
width	91 mm
height	72 mm
depth	68 mm
net weight	0.17 kg
accessory / separate part category	Spare parts for Masterpact NT Spare parts for Masterpact NW

Environment
standards	AS/NZS25 60950 IEC 60950 EN 60950 CSA C22.2 No 60950 UL 60950 UL 508
electromagnetic compatibility	Conducted and radiated emissions: , conforming to EN 55022/EN 55011/FCC Class A Conducted RF disturbances: , conforming to EN 61000-4-6 Electrostatic discharge: , conforming to EN 61000-4-2 Fast transients immunity test: , conforming to EN 61000-4-4 Immunity for industrial environments: , conforming to EN 61000-6-2 Magnetic field at power frequency: , conforming to EN 61000-4-8 Radiated RF fields: , conforming to EN 61000-4-3 Surges: , conforming to EN 61000-4-5
ambient air temperature for operation	-25…70 °C

Offer Sustainability
Sustainable offer status	Green Premium product
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
