Description
| range | PowerLogic |
|---|---|

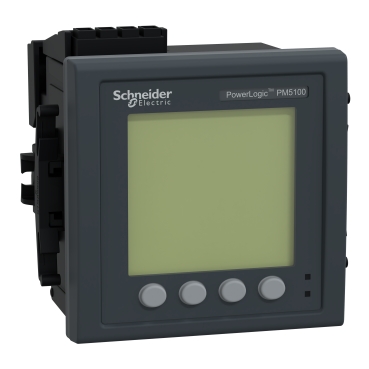

| product name | PowerLogic PM5000 |
| device short name | PM5310R |
| product or component type | Power meter |
| power quality analysis | Up to the 31st harmonic |
|---|---|
| device application | Power monitoring Multi-tariff |
| type of measurement | Current Voltage Frequency Power factor Energy Active and reactive power |
| supply voltage | 100…415 V AC 45…65 Hz 125…250 V DC |
| network frequency | 50 Hz 60 Hz |
| [In] rated current | 5 A 1 A |
| type of network | 1P + N 3P 3P + N |
| maximum power consumption in VA | 10 VA at 415 V |
| ride-through time | 80 ms 120 V AC typical 100 ms 230 V AC typical 100 ms 415 V AC typical |
| display type | Backlit LCD |
| display resolution | 128 x 128 pixels |
| sampling rate | 64 samples/cycle |
| measurement current | 10…9000 mA |
| analogue input type | Voltage (impedance 5 MOhm) Current (impedance 0.3 mOhm) |
| measurement voltage | 35…690 V AC 45…65 Hz between phases 20…400 V AC 45…65 Hz between phase and neutral |
| frequency measurement range | 45…65 Hz |
| number of inputs | 2 digital |
| measurement accuracy | Active energy +/- 0.5 % Reactive energy +/- 2 % Active power +/- 0.5 % Apparent power +/- 0.5 % Frequency +/- 0.05 % Power factor +/- 0.005 Current +/- 0.5 % Voltage +/- 0.5 % |
| accuracy class | Class 0.5S active energy conforming to IEC 62053-22 |
| number of outputs | 2 digital |
| information displayed | Tariff (4) |
| communication port protocol | Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none – 2 wires, insulation 2500 V JBUS |
| communication port support | RS485 |
| data recording | Maintenance logs Time stamping Event logs Data logs Min/max of instantaneous values Alarm logs |
| memory capacity | 256 kB |
| connections – terminals | Voltage circuit: screw terminal block4 Control circuit: screw terminal block2 Input/output circuit: screw terminal block6 Relay output: screw terminal block4 Ethernet network: RJ45 connector Current transformer: RJ45 connector1 |
| mounting mode | Flush-mounted |
| mounting support | Framework |
| standards | IEC 61557-12 IEC 62053-22 EN 50470-3 IEC 62053-24 UL 61010-1 EN 50470-1 IEC 60529 |
| product certifications | CE conforming to IEC 61010-1 CULus conforming to UL 61010-1 |
| width | 96 mm |
| depth | 72 mm |
| height | 96 mm |
| net weight | 430 g |
| electromagnetic compatibility | Limits for harmonic current emissions class A conforming to IEC 61000-3-2 Electrostatic discharge level 4 conforming to IEC 61000-4-2 Conducted RF disturbances level 3 conforming to IEC 61000-4-6 Magnetic field at power frequency level 4 conforming to IEC 61000-4-8 Conducted and radiated emissions class B conforming to EN 55022 |
|---|---|
| IP degree of protection | IP52 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529 |
| relative humidity | 5…95 % at 50 °C |
| pollution degree | 2 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| operating altitude | 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 275.0 g |
| Package 1 Height | 9.05 cm |
| Package 1 width | 9.6 cm |
| Package 1 Length | 9.6 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Weight | 5.99 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Package 3 Height | 750 mm |
