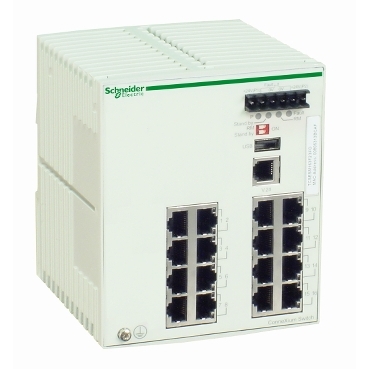

Description
| range of product | ConneXium |
|---|---|
| product or component type | Ethernet TCP/IP managed switch |
| concept | Transparent Ready |
| communication port protocol | Ethernet TCP/IP SSH HTTP HTTPS SNMP RS232 LLDP Telnet SNTP MRP (Media Redundancy Protocol) |
| port Ethernet | 10/100BASE-TX – 16 port(s) copper cable |
| maximum number of switches in cascade | Unlimited |
| cybersecurity | Port hardening |
| integrated connection type | Shielded RJ45 copper cable |
|---|---|
| transmission support medium | Twisted shielded pairs cable CAT 5E for copper cable |
| maximum cable distance between devices | 100 m copper cable |
| Ethernet service | Configuration via web server VLAN Multicast filtering Data stream control IGMP Snooping SNMP-Traps and SYSLOG |
| communication service | TFTP Quality of Service (QoS) Port monitoring Port mirroring Address conflict detection |
| diagnostics run time | Signal contact Self test |
| maximum number of switches in a ring | 50 |
| redundancy | HiPER ring RSTP Redundant network coupling |
| [Us] rated supply voltage | 12…48 V |
| supply voltage limits | 9.6…60 V DC SELV 18…30 V AC SELV |
| power consumption in W | 9.4 W |
| electrical connection | Removable connector 6 ways power supply |
| mounting support | 35 mm symmetrical DIN rail |
| marking | CE UL RCM EtherNet/IP |
| function available | Alarms (Traps) System information Report Trap log |
| local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies 1 LED (red) for fault 1 dual colour LED (green/yellow) for ring manager 1 LED (green) for stand-by 1 LED per channel (green) for link status 1 LED per channel (yellow) for ACT Device status |
| alarm output | 1 voltfree contact 1 A |
| alarm function | Power supply fault Data link status Redundancy ring fault Switch fault |
| Ethernet cabling system | TF switches |
| width | 111 mm |
| height | 131 mm |
| depth | 111 mm |
| net weight | 0.6 kg |
| ambient air temperature for operation | 0…60 °C |
|---|---|
| relative humidity | 10…95 % non-condensing |
| IP degree of protection | IP20 |
| directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| standards | UL 508 EN/IEC 61131 IEC 61850-3 |
| product certifications | CE UL RCM ODVA EtherNet/IP BV GL |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 830.0 g |
| Package 1 Height | 13 cm |
| Package 1 width | 16 cm |
| Package 1 Length | 24 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 8 |
| Package 2 Weight | 6.64 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 40 cm |
| Package 2 Length | 60 cm |
