Sale!

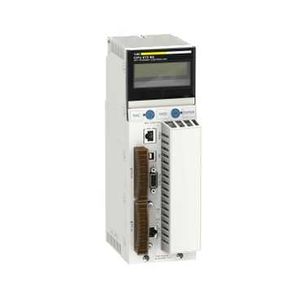

140CPU67260 Used

Original price was: $ 7,670.00.Current price is: $ 5,900.00.

Unity Hot Standby Processor with Multimode Ethernet – 3072 KB – 266 MHz

    Your Email (required)

    Contact No

    Part Numbers

    In stock

    Add to Wishlist
    Category: Tag:

    Description

    Unity Hot Standby processor with multimode Ethernet – 3072 kB – 266 MHz

    Main
    range of product
    Modicon Quantum automation platform
    product or component type
    Unity processor
    Complementary
    mode of transmission
    Multi mode
    clock frequency
    266 MHz
    number of slots
    2
    4
    10
    16
    6
    number of racks
    2 – local rack(s)
    number of distributed I/O station
    63 station(s) – 1 rack(s) – 3 Modbus Plus network(s)
    number of remote I/O station
    31 – 2 S908 remote I/O rack(s)
    31 – 2 ethernet Quantum remote I/O rack(s)
    31 – 2 ethernet X80 remote I/O rack(s)
    discrete I/O number
    Unlimited (31 drops of 28 slots max) – ethernet remote I/O
    0 – local – forbidden in Hot Standby application
    8000 inputs, 8000 outputs – distributed – per network Modbus Plus
    31744 inputs, 31744 outputs – remote
    analogue I/O number
    Unlimited (31 drops of 28 slots max) – ethernet remote I/O
    0 – local – forbidden in Hot Standby application
    500 inputs, 500 outputs – distributed – per network Modbus Plus
    1984 inputs,1984 outputs – remote
    application specific I/O
    Accurate time stamping
    Counter
    High-speed interrupt inputs
    Serial link
    communication service
    Ethernet router
    number of optional modules
    6 ( Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
    maximum number of connections
    1 ( USB)
    2 ( AS-Interface) – distributed
    4 ( AS-Interface) – remote
    6 ( Ethernet TCP/IP) – local
    6 ( Modbus Plus) – local
    6 ( Profibus DP) – local
    1 ( Modbus) – RS232/485 Modbus/ASCII
    integrated connection type
    1 Modbus Plus with
    1 Modbus with
    1 USB with
    1 optic fibre with Hot Standby protocol
    checks
    Hot standby
    Process control
    memory description
    Internal RAM 3072 kB – 1536 kB for data
    Expandable 7168 kB – program with PCMCIA card
    Expandable 8 MB – file storage with PCMCIA card
    switch function
    Key switch memory port on/off
    application structure
    1 cyclic/periodic master task –
    1 periodic fast task – forbidden in Hot Standby application
    128 I/O interrupt tasks – forbidden in Hot Standby application
    128 interrupt tasks – forbidden in Hot Standby application
    32 timer interrupt tasks – forbidden in Hot Standby application
    4 auxiliary tasks – forbidden in Hot Standby application
    number of instructions per ms
    10.28 Kinst/ms if 100 % Boolean
    10.07 Kinst/ms if 65 % Boolean and 35 % numerical
    system overhead
    1 ms – master task
    0.2 ms – fast task
    bus current requirement
    2760 mA
    local signalling
    1 LED yellow Ethernet activity (COM)
    1 LED yellow configuration status (STS)
    electrical connection
    1 connector, connector type: RJ45 for connecting Modbus bus
    1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network
    1 connector, connector type: MT-RJ (multimode fiber optic) for interconnecting primary and secondary PLCs up to 4 km
    Environment
    product certifications
    CE
    CSA
    UL
    Misc (Marine)
    GOST
    standards
    HazLoc
    Ordering and shipping details
    Category
    18150 – QUANTUM CONTROLLERS,HSBY,COMM.
    Discount Schedule
    PC21
    GTIN
    00785901990833
    Nbr. of units in pkg.
    1
    Package weight(Lbs)
    3.1800000000000002
    Returnability
    N
    Country of origin
    FR
