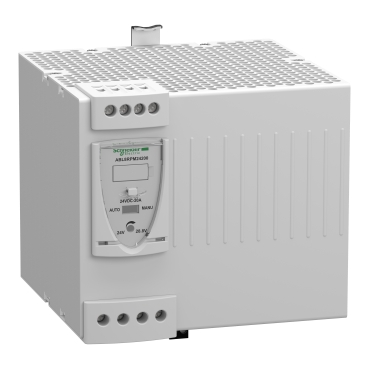

Description
| range of product | Modicon Power Supply |
|---|---|
| product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100…120 V AC single phase, terminal(s): N-L1 200…240 V AC phase to phase, terminal(s): L1-L2 |
| Rated power in W | 480 W |
| Output voltage | 24 V DC |
| Power supply output current | 20 A |
| Permissible temporary current boost | 1.5 x In (for 4 s) |
| Anti-harmonic filter | Low frequency harmonic currents |
| Input voltage limits | 85…132 V AC 170…264 V AC |
|---|---|
| Inrush current | 30 A |
| Power factor | 0.68 at 240 V AC 0.69 at 120 V AC |
| Efficiency | 88 % |
| Output voltage adjustment | 24…28.8 V adjustable |
| Power dissipation in W | 57.6 W |
| Provided equipment | Power factor correction filter conforming to IEC 61000-3-2 |
| Output protection type | Against overload, protection technology: manual or automatic reset Against overvoltage, protection technology: 30…32 V, manual reset Against short-circuits, protection technology: manual or automatic reset Against undervoltage, protection technology: tripping if U < 21.6 V Thermal, protection technology: automatic reset |
| Connections – terminals | Removable screw terminal block: 2 x 2.5 mm², for diagnostic relay Screw type terminals: 3 x 0.5…3 x 4 mm², (AWG 22…AWG 12) for input connection Screw type terminals: 1 x 0.5…1 x 4 mm², (AWG 22…AWG 12) for input ground connection Screw type terminals: 4 x 0.5…4 x 4 mm², (AWG 22…AWG 12) for output connection |
| Status LED | 1 LED (green and red) output voltage 1 LED (green, red and orange) output current |
| Depth | 145 mm |
| Height | 125 mm |
| Width | 146 mm |
| net weight | 1.6 kg |
| Output coupling | Series Parallel |
| marking | CE |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail 35 x 15 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV conforming to IEC 60950-1 SELV conforming to IEC 60204-1 SELV conforming to IEC 60364-4-41 |
| Dielectric strength | 2500 V with between input and ground 3000 V with between input and output 500 V with between output and ground |
| Standards | CSA C22.2 No 60950-1 UL 508 EN/IEC 62368-1 |
|---|---|
| Product certifications | CCSAus EAC KC RCM UL |
| Environmental characteristic | EMC conforming to IEC 61000-6-1 EMC conforming to IEC 61000-6-3 EMC conforming to EN 55024 EMC conforming to IEC 61000-6-4 EMC conforming to EN/IEC 61204-3 Safety conforming to IEC 60950-1 Safety conforming to EN/IEC 61204-3 |
| Operating altitude | 2000 m |
| IP degree of protection | IP20 conforming to IEC 60529 IP10 |
| Ambient air temperature for operation | 50…60 °C with derating factor mounting position A < 2000 m -25…50 °C without derating mounting position A < 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 20.000 cm |
| Package 1 Width | 18.500 cm |
| Package 1 Length | 19.500 cm |
| Package 1 Weight | 2.811 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 114.956 kg |
