Description
| range of product | Modicon STB distributed I/O solution |
|---|---|

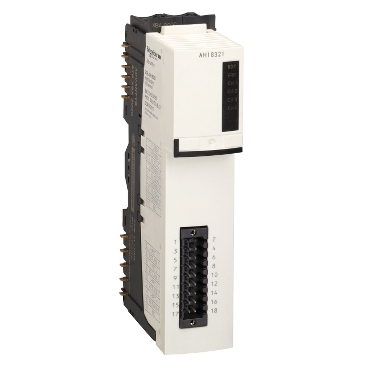

| product or component type | HART interface kit |
| kit composition | STBXTS215018 terminal spring clamp connector STBAHI8321 module STBXBA3000 base |
| Number of channels | 4 |
|---|---|
| function available | Hot swap Virtual placeholder I/O mapping |
| program characteristics | Floating points |
| [Us] rated supply voltage | 24 V |
| voltage range | 19.2…30 V |
| network type | DC |
| protection type | Reverse polarity protection |
| current consumption | 400 mA at 5.25 V DC for logic bus |
| insulation between channels | > 30 Vdc |
| type of filter | Passive 3 dB 25 Hz |
| status LED | 1 LED (green) module status (RDY) 1 LED (red) module error (ERR) 4 LEDs (green/red) channel status (CH1 to CH4) |
| height | 27.8 mm |
| depth | 75.5 mm |
| width | 128.3 mm |
| net weight | 0.11 kg |
| product certifications | UL FM Class 1 Division 2 CSA |
|---|---|
| marking | CE |
| ambient air temperature for operation | 0…60 °C |
| ambient air temperature for storage | -40…85 °C |
| relative humidity | 95 % without condensation |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 135.0 g |
| Package 1 Height | 2.5 cm |
| Package 1 width | 8 cm |
| Package 1 Length | 13 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 5 |
| Package 2 Weight | 675.0 g |
| Package 2 Height | 15 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
