Description
| range of product | Modicon STB distributed I/O solution |
|---|---|

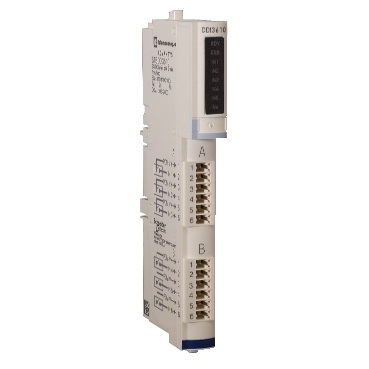

| product or component type | Standard digital input kit |
| kit composition | STBDDI3610 module STBXTS2100, 6-terminal spring clamp connector STBXTS1100, 6-terminal screw type connector STBXBA1000 base |
| discrete input number | 6 |
| discrete input voltage | 24 V |
| discrete input voltage type | DC |
| input voltage limits | 15…30 V at state 1 -3…5 V at state 0 |
|---|---|
| permissible voltage | 30 V |
| absolute maximum voltage | 56 V 1.3 ms |
| discrete input current | 4.5 mA |
| current state 0 guaranteed | <= 0.5 mA |
| current state 1 guaranteed | >= 2.5 mA |
| discrete input logic | Positive or negative |
| response time | 1.21 ms off-to-on 1.74 ms on-to-off |
| protection type | Power protection integrated fuse on PDM time lag 10 A Input protection resistor-limited Reverse polarity protection |
| insulation between channels and logic bus | 1500 V for 1 minute |
| cold swapping | Yes |
| hot swapping | Yes for standard NIMs |
| input filtering | 1 ms |
| product compatibility | I/O base STBXBA1000 Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage | 24 V DC |
| supply | Power distribution module |
| current consumption | 55 mA at 5 V DC for logic bus |
| marking | CE |
| overvoltage category | II |
| status LED | 1 LED (green) module status (RDY) 1 LED per channel (green) channel status (IN1 to IN6) 1 LED (red) module error (ERR) |
| depth | 65.1 mm |
| height | 18.4 mm |
| width | 125 mm |
| net weight | 0.112 kg |
| standards | EN/IEC 61131-2 type 1 |
|---|---|
| product certifications | FM Class 1 Division 2 UL CSA |
| pollution degree | 2 conforming to IEC 60664-1 |
| operating altitude | <= 2000 m |
| IP degree of protection | IP20 conforming to EN 61131-2 class 1 |
| ambient air temperature for operation | -25…70 °C (without derating) |
| ambient air temperature for operation | 32…140 °F without derating |
| ambient air temperature for storage | -40…85 °C without derating |
| ambient air temperature for storage | -40…185 °F without derating |
| relative humidity | 95 % at 60 °C without condensation |
| vibration resistance | 3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail +/-0.35 mm at 10…58 Hz |
| shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 135.0 g |
| Package 1 Height | 2.7 cm |
| Package 1 width | 8 cm |
| Package 1 Length | 13 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 28 |
| Package 2 Weight | 4.206 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
