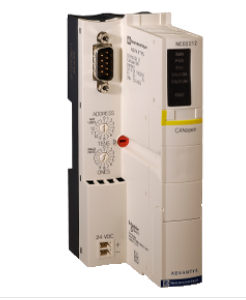

STBNC02212 Standard Network Interface Module STB – CANopen bus – 1 Mbit/s
| range of product |
Modicon STB distributed I/O solution
|
|
|---|---|---|
| product or component type |
Standard Network Interface Module
|
|
| integrated connection type |
CANopen bus conforming to CIA DS-301 9-way male SUB-D connector double shielded twisted pair (bus)
CANopen bus conforming to CIA DS-301 HE-13 (RS232 port) CANopen bus conforming to CIA DS-301 8-way female (RS232 port) |
|
| number of segments |
1 primary, maximum 6 extensions
|
|
| number of slave |
127
|
|
| transmission rate |
1 Mbit/s for bus length of 30 m
10 kbit/s for bus length of 5000 m |
|
| structure type |
CAN field bus
|
| number of addressable I/O module |
0…32 per island
|
|
|---|---|---|
| communication service |
Service Data Object (SDO)
Network management (NMT) Process Data Object (PDO) |
|
| [Us] rated supply voltage |
24 V DC
|
|
| power supply type |
SELV
|
|
| maximum supply current |
700 A
|
|
| supply voltage limits |
19.2…30 V
|
|
| input current |
430 mA for supply circuit
|
|
| nominal output current |
0.575 A at 60…70 °C
1.2 A |
|
| output voltage |
5.25 V DC (tolerance: +/- 0.21 %) for logic bus
|
|
| marking |
CE
|
|
| overvoltage category |
II
|
|
| status LED |
1 LED (green)CAN RUN
1 LED (green)island state (RUN) 1 LED (green)power supply (PWR) 1 LED (red)CAN ERR 1 LED (red)module error (ERR) 1 LED (yellow)test mode |
|
| depth |
70 mm
|
|
| height |
40 mm
|
|
| width |
128.3 mm
|
|
| net weight |
0.135 kg
|
| electromagnetic compatibility |
Immunity to electromagnetic interference conforming to IEC 61131-2
|
|
|---|---|---|
| product certifications |
ATEX Cat 3G
FM Class 1 Division 2 CSA UL C-Tick |
|
| pollution degree |
2 conforming to IEC 60664-1
|
|
| operating altitude |
<= 2000 m
|
|
| IP degree of protection |
IP20 conforming to EN 61131-2 class 1
|
|
| ambient air temperature for operation |
0…60 °C (without derating)
-25…70 °C (with derating factor) |
|
| ambient air temperature for storage |
-40…85 °C
|
|
| relative humidity |
95 % at 60 °C without condensation
|
|
| vibration resistance |
3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail
5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail +/-0.35 mm at 10…58 Hz |
|
| shock resistance |
30 gn for 11 ms conforming to IEC 88 reference 2-27
|
