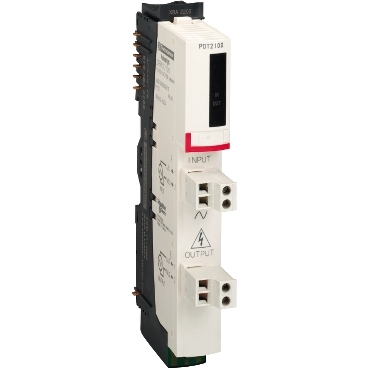

Description
| range of product | Modicon STB distributed I/O solution |
|---|---|
| product or component type | Standard power distribution kit |
| kit composition | STBPDT2100 module STBXBA2200 base STBXTS2130, spring type connectors STBXTS1130, screw type connectors |
|---|---|
| [Us] rated supply voltage | 115…230 V |
| supply circuit type | AC |
| supply frequency | 50…60 Hz |
| power supply output current | 0…10 A at 30 °C (output circuit) 0…2.5 A at 60 °C (input circuit) 0…5 A at 30 °C (input circuit) 0…5 A at 60 °C (output circuit) |
| voltage range | 85…265 V AC sensor/actuator bus |
| hot swapping fallback | Hot swapping illegal |
| protection type | Built-in overcurrent protection, 10 A time-lag fuse for output circuit Built-in overcurrent protection, 5 A time-lag fuse for input circuit |
| permissible current | 30 A for 2 minutes grounding terminal |
| voltage detection threshold | < 50 V +/-5 AC IN/OUT LED non lit > 70 V +/-5 AC IN/OUT LED lit |
| product compatibility | Mounting base STBXBA2200 |
| marking | CE |
| overvoltage category | II |
| status LED | 1 LED (green) actuator bus power supply (OUT) 1 LED (green) sensor bus power supply (IN) |
| depth | 65.1 mm |
| height | 18.4 mm |
| width | 125 mm |
| net weight | 0.129 kg |
| product certifications | CSA FM Class 1 Division 2 UL |
|---|---|
| pollution degree | 2 conforming to IEC 60664-1 |
| operating altitude | <= 2000 m |
| IP degree of protection | IP20 conforming to EN 61131-2 class 1 |
| ambient air temperature for operation | 0…60 °C (without) |
| ambient air temperature for storage | -40…85 °C |
| relative humidity | 95 % at 60 °C without condensation |
| vibration resistance | +/-0.35 mm at 10…58 Hz 3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail |
| shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 146.0 g |
| Package 1 Height | 2.7 cm |
| Package 1 width | 8.6 cm |
| Package 1 Length | 14 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Weight | 3.93 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 384 |
| Package 3 Weight | 56.064 kg |
| Package 3 Height | 60 cm |
| Package 3 width | 80 cm |
| Package 3 Length | 384 cm |
