Description

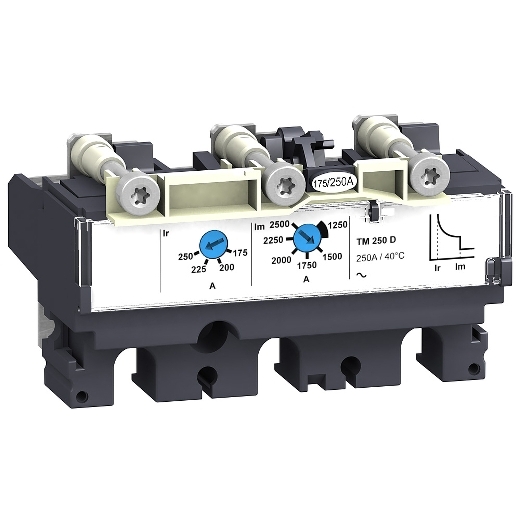

trip unit TM250D for ComPact NSX 250 circuit breakers, thermal magnetic, rating 250 A, 3 poles 3d TM250D
| range | ComPact TM250D |
|---|---|
| range of product | ComPact TM250D |
| product or component type | Trip unit |
| trip unit name | TM-D |
| trip unit technology | Thermal-magnetic |
| range compatibility | ComPact NSX250 |
| device application | Distribution |
| Number of poles | 3P |
| protected poles description | 3t |
| trip unit protection functions | LI |
| protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Trip unit rated current | 250 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| network type | AC |
| network frequency | 50/60 Hz |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
|---|---|
| [Ir] long-time protection pick-up adjustment range | 0.7…1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range | 120…400 s at 1.5 x In 15 s at 6 x Ir |
| Short-time protection pick-up adjustment type Isd | Adjustable |
| [Isd] Short-time protection pick-up adjustment range | 5…10 x In |
| Short-time protection delay adjustment type tsd | Fixed |
| earth-leakage protection | Without |
| standards | UL 508 EN/IEC 60947-2 |
|---|---|
| product certifications | EAC CCC Marine |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 452.5 g |
| Package 1 Height | 6.5 cm |
| Package 1 width | 9.5 cm |
| Package 1 Length | 11.2 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 224 |
| Package 2 Weight | 116.72 kg |
| Package 2 Height | 45 cm |
| Package 2 width | 80 cm |
| Package 2 Length | 120 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 28 |
| Package 3 Weight | 13.09 kg |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
