Description
| range of product | Modicon TM3 |
|---|---|

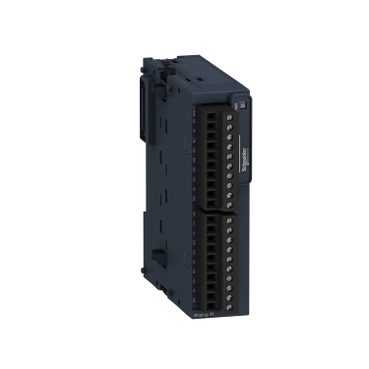

| product or component type | Analog input module |
| range compatibility | Modicon M221 Modicon M241 Modicon M251 Modicon M262 |
| analogue input number | 4 |
| analogue input type | Current 4…20 mA current 0…20 mA voltage 0…10 V voltage – 10…10 V |
| analogue input resolution | 12 bits 11 bits + sign |
|---|---|
| permissible continuous overload | 13 V, analogue input type: voltage 40 mA, analogue input type: current |
| input impedance | <= 50 Ohm current >= 1 MOhm voltage |
| LSB value | 2.44 mV 0…10 Vvoltage 4.88 mV – 10…10 Vvoltage 4.88 µA 0…20 mAcurrent 3.91 µA 4…20 mAcurrent |
| conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| sampling duration | 1 ms |
| absolute accuracy error | +/- 0.1 % of full scale at 25 °C +/- 1 % of full scale |
| temperature drift | +/- 0.006 %FS/°C |
| repeat accuracy | +/-0.5 %FS |
| non-linearity | +/- 0.2 %FS |
| cross talk | <= 1 LSB |
| [Us] rated supply voltage | 24 V DC |
| supply voltage limits | 20.4…28.8 V |
| type of cable | Twisted shielded pairs cable <30 m for input circuit |
| current consumption | 35 mA at 5 V DC via bus connector no load 45 mA at 5 V DC via bus connector full load 30 mA at 24 V DC via external supply |
| local signalling | 1 LED (green) for PWR |
| electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| insulation | Between input and supply at 1500 V AC Between input and internal logic at 500 V AC |
| marking | CE |
| surge withstand | 1 kV power supply common mode conforming to EN/IEC 61000-4-5 0.5 kV power supply differential mode conforming to EN/IEC 61000-4-5 1 kV input common mode conforming to EN/IEC 61000-4-5 |
| mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| height | 90 mm |
| depth | 70 mm |
| width | 23.6 mm |
| net weight | 0.11 kg |
| standards | EN/IEC 61131-2 EN/IEC 61010-2-201 |
|---|---|
| resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2 |
| resistance to electromagnetic fields | 10 V/m 80 MHz…1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz…2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2 GHz…3 GHz conforming to EN/IEC 61000-4-3 |
| resistance to magnetic fields | 30 A/m conforming to EN/IEC 61000-4-8 |
| resistance to fast transients | 1 kV (I/O) conforming to EN/IEC 61000-4-4 |
| resistance to conducted disturbances | 10 V 0.15…80 MHz conforming to EN/IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| electromagnetic emission | Radiated emissions – test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Radiated emissions – test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011 |
| immunity to microbreaks | 10 ms |
| ambient air temperature for operation | -10…55 °C horizontal installation -10…35 °C vertical installation |
| ambient air temperature for storage | -25…70 °C |
| relative humidity | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 |
| pollution degree | 2 |
| operating altitude | 0…2000 m |
| storage altitude | 0…3000 m |
| vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail |
| shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 210.0 g |
| Package 1 Height | 7.585 cm |
| Package 1 width | 10.598 cm |
| Package 1 Length | 12.814 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 42 |
| Package 2 Weight | 10.08 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 40 cm |
| Package 2 Length | 60 cm |
