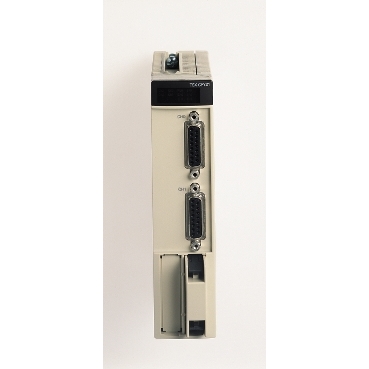

Description
| range of product | Modicon Premium Automation platform |
|---|---|
| product or component type | Counter modules |
| I/O modularity | 2 channels |
| electrical circuit type | Auxiliary output conforming to EN/IEC 61131 |
| counting frequency | 40 kHz |
|---|---|
| power dissipation in W | 4.5…6 W |
| cycle time | 5 ms |
| discrete input logic | Current sink for auxiliary input (preset, enable and read) conforming to IEC 1131 Type 2 Resistive for 2/3-wire proximity sensors PNP/NPN input conforming to IEC 1131 Type 2 Resistive for encoder input |
| input logic | Positive |
| input compatibility | 2/3-wire proximity sensors PNP/NPN Incremental encoder 10…30 V totem pole Incremental encoder 5 V DC RS422 |
| input voltage | 24 V 18 mA 2/3-wire proximity sensors PNP/NPN 24 V 7 mA auxiliary input (preset, enable and read) 5 V 18 mA encoder input |
| input voltage limits | <= 5.5 V encoder input 19…30 V 2/3-wire proximity sensors PNP/NPN 19…30 V auxiliary input (preset, enable and read) |
| voltage state 1 guaranteed | >= 11 V for 2/3-wire proximity sensors PNP/NPN >= 11 V for auxiliary input (preset, enable and read) >= 2.4 V for encoder input |
| current state 1 guaranteed | >= 3.7 mA (encoder input) >= 6 mA (2/3-wire proximity sensors PNP/NPN) >= 6 mA (auxiliary input (preset, enable and read)) |
| voltage state 0 guaranteed | <= 1.2 V for encoder input <= 5 V for 2/3-wire proximity sensors PNP/NPN <= 5 V for auxiliary input (preset, enable and read) |
| current state 0 guaranteed | <= 1 mA (encoder input) <= 2 mA (2/3-wire proximity sensors PNP/NPN) <= 2 mA (auxiliary input (preset, enable and read)) |
| response time | < 2.5 ms sensor voltage at loss of 24 V auxiliary input (preset, enable and read) |
| input impedance | Encoder input: > 270 Ohm at U = 2.4 V 2/3-wire proximity sensors PNP/NPN: 1400 Ohm at Un Auxiliary input (preset, enable and read): 3400 Ohm at Un Encoder input: 400 Ohm at Un |
| output voltage | 24 V DC |
| nominal output current | 0.5 A |
| output voltage limits | 19…30 V |
| maximum voltage drop | <0.5 V at state 1 |
| output compatibility | Positive logic DC inputs (resistance <= 15 kOhm) for auxiliary output |
| maximum leakage current | 0.1 mA |
| switching frequency | < 0.6/LI² Hz on inductive load load |
| output overload protection | Thermal tripping via program or automatically Current limiter |
| output short-circuit protection | Thermal tripping via program or automatically Current limiter |
| output overvoltage protection | Zener diode |
| reverse polarity protection | Reverse diode on supply |
| checks | Sensor power supply |
| current consumption | 280 mA at 5 V DC 30 mA at 24 V DC |
| module format | Standard |
| local signalling | 1 LED (green) for module operating (RUN) 1 LED (red) for external fault (I/O) 1 LED (red) for internal fault, module failure (ERR) 2 LEDs (green) for axis diagnostics available (CH.) |
| electrical connection | 1 connector HE-10, 20 pins 2 connectors SUB-D 15 |
| net weight | 0.32 kg |
| protective treatment | TC |
|---|---|
| ambient air temperature for operation | 0…60 °C |
| ambient air temperature for storage | -25…70 °C |
| relative humidity | 5…95 % without condensation |
| operating altitude | <= 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 489.0 g |
