Description
| Range of Product | Modicon Premium Automation platform |
|---|---|

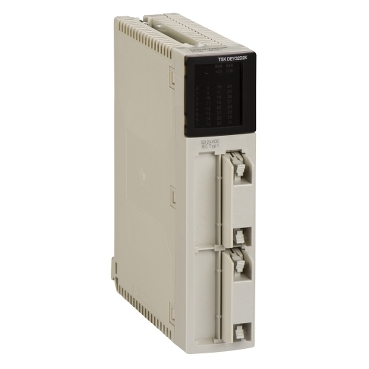

| Product or Component Type | Discrete input module |
| Discrete input number | 32 current sink isolated EN/IEC 61131-2 type 1 |
| Discrete input voltage | 24 V DC positive |
| Sensor power supply | 19…30 V |
| Discrete input current | 3.5 mA |
| Voltage state 1 guaranteed | >= 11 V |
|---|---|
| Current state 1 guaranteed | >= 3 mA |
| Voltage state 0 guaranteed | <= 5 V |
| Current state 0 guaranteed | <= 1.5 mA |
| Input impedance | 6300 Ohm at state 1 |
| Response Time | <= 7 ms 4 ms |
| isalotion resistance | < 10 MOhm 500 V DC |
| Power dissipation | (1 W + 0.1 W x No of channels used) |
| Electrical Connection | HE-10 connector |
| Marking | CE |
| Current consumption | 135 mA 5 V DC 160 mA 24 V DC |
| module format | Standard |
| Net Weight | 0.66 lb(US) (0.3 kg) |
| Dielectric strength | 1500 V AC 50/60 Hz |
|---|---|
| Standards | CSA C22.2 No 213 Class I Division 2 Group B IEC 60664 CSA C22.2 No 142 CSA C22.2 No 213 Class I Division 2 Group A 92/31/EEC EN/IEC 61131-2 UL 508 CSA C22.2 No 213 Class I Division 2 Group D 93/68/EEC CSA C22.2 No 213 Class I Division 2 Group C 73/23/EEC 89/336/EEC |
| Product Certifications | LR GL BV RMRS RINA ABS DNV |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0…6561.68 ft (0…2000 m) |
| protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
| Category | 22558 – TSX PREMIUM, ATRIUM & PL7 PRO |
|---|---|
| Discount Schedule | PC22 |
| GTIN | 3389110725520 |
| Returnability | No |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.24 in (26.0 cm) |
| Package 1 Weight | 14.53 oz (412.0 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 11.81 in (30.0 cm) |
| Package 2 Width | 11.81 in (30.0 cm) |
| Package 2 Length | 15.75 in (40.0 cm) |
| Package 2 Weight | 8.40 lb(US) (3.811 kg) |
