Description

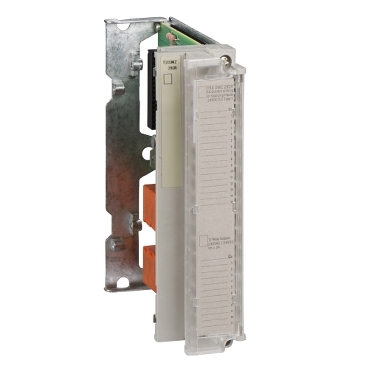

| Range of Product | Modicon TSX Micro automation platform |
|---|---|
| Product or Component Type | Discrete relay I/O base |
| Discrete input number | 16 screw terminal block |
| Discrete input voltage | 100…120 V AC |
| Discrete input frequency | 47…63 Hz |
| Discrete input current | 11 mA 50 Hz 13 mA 60 Hz |
| Input voltage limits | >= 74 V at state 1 < 20 V at state 0 |
|---|---|
| Current state 0 guaranteed | <= 4 mA |
| Current state 1 guaranteed | >= 6 mA |
| Response time | < 10 ms output 11…18 ms input at state 0 to state 1 50 Hz 9…16 ms input at state 0 to state 1 60 Hz 11…24 ms input at state 1 to state 0 50 Hz 10…22 ms input at state 1 to state 0 60 Hz |
| Input compatibility | 2-wire proximity sensor |
| Load type | Capacitive |
| Current consumption | 125 mA |
| Power dissipation in W | 5.6 W |
| Output voltage limits | 19…264 V AC 10…34 V DC |
| Contacts type and composition | NO |
| Power consumption in VA | 50 VA 24 V AC-12 resistive 110 VA 48 V AC-12 resistive 220 VA 110 V AC-12 resistive 220 VA 220 V AC-12 resistive 24 VA 24 V AC-15 inductive 24 VA 48 V AC-15 inductive 220 VA 220 V AC-15 inductive 110 VA 110 V AC-15 inductive |
| Power consumption in W | 40 W 24 V DC-12 resistive 24 W 24 V DC-13 inductive |
| Isolation voltage | 1500 V 1 s |
| Insulation resistance | >= 10 mOhm |
| Net Weight | 1.10 lb(US) (0.5 kg) |
| Standards | IEC 1131-2 Type 2 |
|---|---|
| [Ith] conventional free air thermal current | 3 A |
| Category | US1PC1422556 |
|---|---|
| Discount Schedule | PC14 |
| GTIN | 3389110540444 |
| Returnability | No |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.24 in (26.0 cm) |
| Package 1 Weight | 22.93 oz (650.0 g) |
