Description
| range of product | Modicon TSX Micro automation platform |
|---|---|

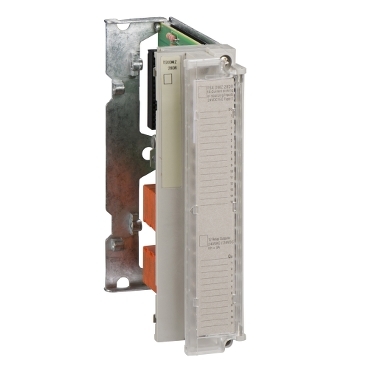

| product or component type | Discrete output module |
| discrete output number | 32 screw terminal block |
| discrete output voltage | 24 V DC |
| discrete output current | 0.5 mA |
| discrete output logic | Positive |
| output voltage limits | 19…30 V |
|---|---|
| output current limits | 0.625 A |
| maximum leakage current | 0.5 mA at state 0 |
| [Ures] residual voltage | 0.3 V |
| load impedance ohmic | 48 Ohm |
| response time | < 0.5 ms at state 1 < 0.5 ms at state 0 |
| switching frequency | < 0.6/LI² Hz |
| output overvoltage protection | By zener diode |
| output short-circuit protection | Thermal circuit breaker Current limiter |
| reverse polarity protection | Reverse diode on power supply |
| paralleling of outputs | Yes : 2 maximum |
| current consumption | 94 mA |
| power dissipation in W | 0.15 W by channel 3.2 W by module |
| isolation voltage | 1500 V for 1 s |
| net weight | 0.42 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 552.0 g |
| Package 1 Height | 5.7 cm |
| Package 1 width | 18.2 cm |
| Package 1 Length | 26 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Weight | 4.816 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
