Description

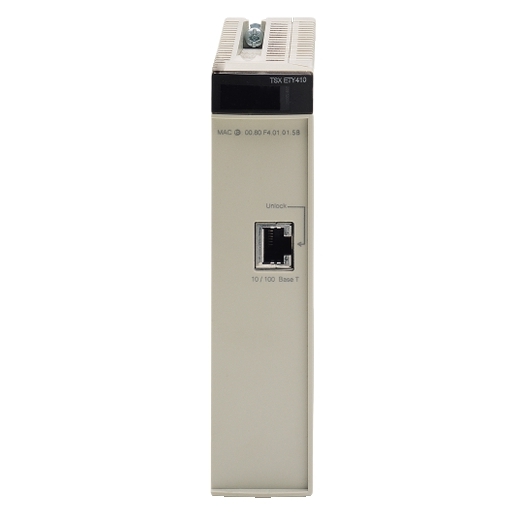

Ethernet TCP/IP module – 10/100 Mbit/s – web server class B30
| range of product | Modicon Premium Automation platform |
|---|---|
| product or component type | Ethernet TCP/IP module |
| physical interface | RJ45 – 10BASE-T/100BASE-TX 1 twisted pair |
| transmission rate | 10/100 Mbit/s |
| communication service | Bandwidth management FDR server Global Data I/O scanning Modbus TCP messaging SMTP e-mail notification SNMP agent Uni-TE messaging |
| supply | Via the power supply of the rack |
| local signalling | 1 LED for collision detection (COL) 1 LED for Ethernet network status (RUN) 1 LED for Ethernet port fault (ERR) 1 LED for transmission/reception activity (TX/TR) |
| communication port protocol | Modbus TCP Uni-Telway |
|---|---|
| maximum number of connections | 64 |
| web server | Transparent ready class B30 |
| web feature | Rack viewer Data Editor (via PC terminal) |
| marking | CE |
| product compatibility | PL7 Pro Unity Pro |
| current consumption | 360 mA 5 V DC |
| module format | Standard |
| net weight | 0.34 kg |
| standards | CSA 1010-1 FM Class 1 Division 2 group A FM Class 1 Division 2 group C FM Class 1 Division 2 group B FM Class 1 Division 2 group D EN 61131-2 UL 508 |
|---|---|
| IP degree of protection | IP20 |
| ambient air temperature for operation | 0…60 °C |
| relative humidity | 10…95 % at 60 °C without condensation |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 426 g |
| Package 1 Height | 5.5 cm |
| Package 1 width | 18 cm |
| Package 1 Length | 26 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Weight | 5.991 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 40 cm |
| Package 2 Length | 60 cm |
