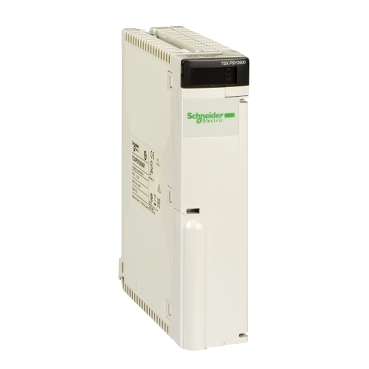

Name: TSXPSY2600M
SKU: 7115
Price: 700.00 USD
Availability: InStock

Description

Main
Range of product	Modicon Premium Automation platform
Product or component type	Power supply module

Complementary
Primary voltage	100…240 V AC 85…264 V
Network frequency	50/60 Hz
network frequency limits	47…63 Hz
Input current	300 mA 240 V 500 mA 100 V
Inrush current	37 A 100 V 75 A 240 V
I²t on activation	0.63 A².s 100 V 2.6 A².s 240 V
It on activation	0.034 A.s 100 V 0.067 A.s 240 V
Protection type	Internal fuse 4 A 5 x 20 mm time-delayed primary circuit Overload protection secondary circuit Overvoltage protection secondary circuit Short-circuit protection secondary circuit
Total useful secondary power	26 W
Secondary power	15 W 24 V DC 25 W 5 V DC
Current at secondary voltage	0.5 A 24 V DC sensor power supply 0.6 A 24 V DC relay power supply 5 A 5 V DC
Insulation resistance	>= 100 MOhm primary/ground >= 100 MOhm primary/secondary
Marking	CE
Local signalling	1 LED (green) for presence of sensor voltage (24V) 1 LED (green) for presence of voltages (OK) 1 LED (red) for battery fault (BAT)
module format	Standard
Net weight	0.51 kg

Environment
Immunity to microbreaks	10 ms
Dielectric strength	2000 V primary/earth 2000 V primary/secondary
Standards	CSA C22.2 No 142 CSA C22.2 No 213 Class I Division 2 Group A IEC 61131-2 UL 508 89/336/EEC CSA C22.2 No 213 Class I Division 2 Group B 92/31/EEC 93/68/EEC CSA C22.2 No 213 Class I Division 2 Group D 73/23/EEC CSA C22.2 No 213 Class I Division 2 Group C
product certifications	RMRS BV RINA GL ABS DNV LR
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 % without condensation for operation 5…95 % without condensation for storage
Operating altitude	0…2000 m
protective treatment	TC
IP degree of protection	IP20
Pollution degree	2
