Description

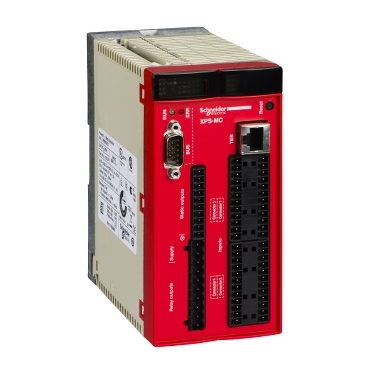

| range of product | Preventa Safety automation |
|---|---|
| product or component type | Configurable safety controller |
| safety module name | XPSMC |
| safety use category | Category 4 maximum conforming to EN 954-1/EN/ISO 13849-1 PLE maximum conforming to EN/ISO 13849-1 SIL 3 maximum conforming to IEC 61508 |
| type of start | Configurable |
| standards | EN/IEC 60947-5-1 EN 574/ISO 13851 EN 1760-1/ISO 13856-1 EN/IEC 61496-1 IEC 61508 EN 954-1/EN/ISO 13849-1 EN/IEC 60204-1 |
| product certifications | UL TÜV CSA |
| [Us] rated supply voltage | 24 V DC – 20…20 % |
| number of inputs | 32 |
| communication port protocol | CANopen with 1 SUB-D 9-pin male port(s), serial link, transmission rate: 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps or 1 Mbps Modbus with 1 RJ45 port(s), serial link, transmission rate: 1200 bps, 2400 bps, 4800 bps, 9600 bps or 19200 bps |
| safety level | Can reach PL e/category 4 conforming to EN 954-1/EN/ISO 13849-1 Can reach SIL 3 conforming to IEC 61508 |
| function of module | Dynamic monitoring of hydraulic valves on linear presses Eccentric press Emergency stop monitoring, with or without time delay, 1 or 2-channel wiring Enabling switch monitoring, 2 or 3 contacts Foot switch monitoring Guard monitoring for injection presses and blowing machines Guard monitoring with 1 or 2 limit switches Hydraulic press Magnetic switch monitoring Monitoring safety stop at top dead centre on eccentric press Muting function of light curtains Position selector Safety mat monitoring Safety time delays Shaft/chain breaking monitor Zero speed detection Light curtain monitoring category 4 conforming to EN/IEC 61496 Two-hand control category 3 conforming to EN 574/ISO 13851 |
|---|---|
| synchronisation time between inputs | Depending on configuration selected |
| power consumption in W | 12 W |
| input protection type | External fuse 16 A |
| [Uc] control circuit voltage | 28.8 V |
| maximum line resistance | 100 Ohm <2000 m |
| output type | 2 relays, 2 NO contacts (4 NO total) circuit(s) Solid state, 6 circuit(s), volt-free |
| breaking capacity | 180 VA holding AC-15 C300 relay output 1800 VA inrush AC-15 C300 relay output |
| breaking capacity | 2 A at 24 V for static output circuit 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output |
| output thermal current | 4 A for both outputs simultaneously 6 A for 1 output and 2 A for the other for relay output |
| [Ith] conventional free air thermal current | 16 A for relay output 6.5 A for static output circuit |
| associated fuse rating | 16 A gL for power supply 4 A gL for relay output 6 A fast blow for relay output |
| minimum output current | 10 mA for relay output |
| minimum output voltage | 17 V for relay output |
| response time | Configurable : 20 ms or 30 ms with software XPSMCWIN |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to IEC 60647-5-1, DIN VDE 0110 part 1 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to IEC 60647-5-1, DIN VDE 0110 part 1 |
| method of access | Slave |
| exchange size | 14 words |
| number of addresses | 1…127 for CANopen 1…247 for Modbus |
| parity | Even for Modbus No for Modbus Odd for Modbus |
| data format | 1 start bit/8 data bits 1 stop bit even or odd 2 stop bits without parity RTU (Remote Terminal Unit) mode |
| supported modbus function | 01: 8-bit output data/32-bit input data 02: 32-bit input data/8-bit output data 03: information and errors |
| local signalling | 48 LEDs |
| mounting support | Mounting plate |
| depth | 153 mm |
| height | 151.5 mm |
| width | 74 mm |
| net weight | 0.84 kg |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
|---|---|
| ambient air temperature for operation | -10…55 °C |
| ambient air temperature for storage | -25…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.4 cm |
| Package 1 Width | 17.8 cm |
| Package 1 Length | 25.8 cm |
| Package 1 Weight | 1.28 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 8.305 kg |
