Description
Range | PowerLogic |
---|---|

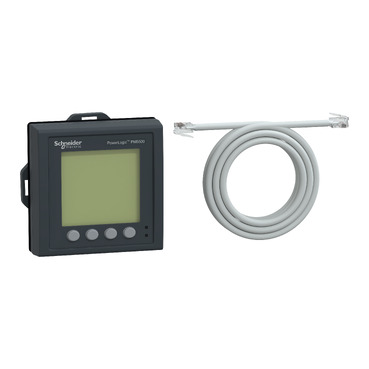

Product or Component Type | Remote display |
Device Application | Human-machine dialogue application |
Range compatibility | PowerLogic PowerLogic PM5000 |
Display Type | Backlit LCD |
Display colour | Monochrome |
---|---|
display resolution | 128 x 128 pixels |
display size | 67 x 62.5 mm |
Information Displayed | Power Energy consumption Harmonic distortion Frequency Voltage Current |
Messages display capacity | 6 lines Graphic objects (bargraph, button, light…) |
Local signalling | Communication LED Green) Programming indication LED amber) |
Control type | 4 x push-button |
Connector Type | RJ45 |
Mounting Mode | Flush-mounted |
Mounting support | Framework remote display |
Width | 3.78 in (96 mm) |
Height | 3.78 in (96 mm) |
Embedding Depth | 0.83 in (21 mm) |
Projecting depth | 1.06 in (27 mm) |
IP degree of protection | IP52 IEC 60529 |
---|---|
Relative humidity | 5…95 % 99 °F (37 °C) |
Operating altitude | 0…9842.52 ft (0…3000 m) |
Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Category | US10PL109778 |
---|---|
Discount Schedule | 0PL1 |
GTIN | 3606480761423 |
Returnability | Yes |
Country of origin | US |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 2.76 in (7 cm) |
Package 1 Width | 3.94 in (10 cm) |
Package 1 Length | 3.94 in (10 cm) |
Package 1 Weight | 11.29 oz (320 g) |
