Description
| range | PowerLogic |
|---|---|

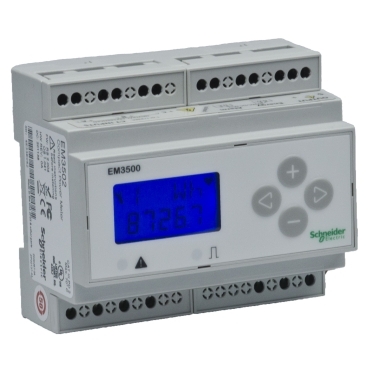

| range of product | PowerLogic EM3500 |
| device short name | EM3550 |
| product or component type | Energy meter |
| metering type | Voltage U21, U32, U13, V1, V2, V3 Peak demand power PM, QM, SM Demand power P, Q, S Current I1, I2, I3, Iavg |
| poles description | 3P + N |
|---|---|
| type of measurement | Active and reactive power total Active and reactive power per phase Apparent power total Apparent power per phase Power factor total Power factor per phase Peak demand power Current Voltage Frequency |
| device application | Sub billing Partial meter |
| accuracy class | Class 0.2S power conforming to IEC 62053-22 Class 0.2S energy conforming to IEC 62053-22 Class 0.2S power conforming to ANSI C12.20 Class 0.2S energy conforming to ANSI C12.20 |
| measurement accuracy | Power +/- 0.2 % Energy +/- 0.2 % |
| input type | Split core current transducer 0.333 V or 1 V |
| rated voltage | 90…347 V |
| network frequency | 50 Hz 60 Hz |
| technology type | Electronic |
| display type | Backlit LCD |
| measurement current | 5…32000 A |
| display digits | 5 |
| information displayed | Status and alert Communication with system Input/output status Error Tx activity Rx activity Instant power per usage |
| tamperproof of settings | Protected by access code |
| communication port protocol | Modbus RTU at 1200…38400 bps – 2-wire |
| communication port support | Screw terminal block: RS485 |
| communication service | Total cumulated energy Total cumulated active energy |
| data recording | Energy consumption logs |
| Demand intervals | Fixed or rolling block External synchronisation to communication |
| local signalling | Red LED: threshold reached Green flashing LED: output signal |
| number of outputs | 1 alarm output 1 pulse |
| [Ue] rated operational voltage | 90…347 V AC 50/60 Hz between phase and neutral conforming to UL 156…600 V AC 50/60 Hz between phases conforming to UL 90…300 V AC 50/60 Hz between phase and neutral conforming to CE 125…300 V DC |
| power consumption in VA | 5 VA at 347 V AC (between phase and neutral) 5 VA at 600 V AC (between phases) |
| power consumption in W | 3 W at 300 V |
| ride-through time | 100 ms 120 V AC |
| mounting mode | Clip-on By screws |
| mounting support | DIN rail |
| standards | UL 508 IEC 61010-1 CSA C22.2 No 14-05 |
| product certifications | CE conforming to IEC 61010 CULus conforming to UL 508 |
| relative humidity | 0…95 % |
|---|---|
| ambient air temperature for operation | -30…70 °C |
| ambient air temperature for storage | -40…85 °C |
| colour | Dark grey |
| 9 mm pitches | 12 |
| width | 107 mm |
| height | 91 mm |
| depth | 59 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.1 cm |
| Package 1 Width | 10.7 cm |
| Package 1 Length | 5.9 cm |
| Package 1 Weight | 3.629 kg |
