Description
| Range | PowerLogic |
|---|---|
| range of product | PowerLogic EM3500 |
| Device short name | EM3555 |

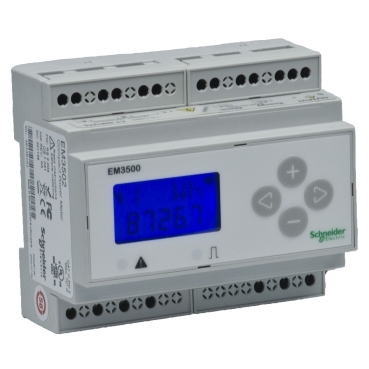

| Product or Component Type | Energy meter |
| Metering type | Peak demand power PM, QM, SM Current I1, I2, I3, Iavg Active, reactive, apparent energy (signed, four quadrant) Demand power P, Q, S Voltage U21, U32, U13, V1, V2, V3 |
| poles description | 3P + N |
|---|---|
| Type of measurement | Active and reactive power total Active and reactive power per phase Apparent power total Apparent power per phase Power factor total Power factor per phase Peak demand power Current Voltage Frequency |
| Device Application | Partial meter Sub billing |
| Accuracy class | Class 0.2S power IEC 62053-22 Class 0.2S energy IEC 62053-22 Class 0.2S power ANSI C12.20 Class 0.2S energy ANSI C12.20 |
| Measurement accuracy | Power +/- 0.2 % Energy +/- 0.2 % |
| input type | Split core current transducer 0.333 V or 1 V |
| Rated voltage | 90…347 V |
| Network Frequency | 60 Hz 50 Hz |
| Technology Type | Electronic |
| Display Type | Backlit LCD |
| Measurement current | 5…32000 A |
| Display digits | 5 |
| Information displayed | Status and alert Communication with system Input/output status Error Tx activity Rx activity Instant power per usage |
| Tamperproof of settings | Protected by access code |
| Communication port protocol | Modbus RTU 1200…38400 bps – 2-wire |
| Communication port support | Screw terminal block RS485 |
| communication of data | Instantaneous and demand values Lifetime energy production |
| communication service | Total cumulated active energy Total cumulated energy |
| Data recording | Energy consumption logs Time stamping |
| Demand intervals | External synchronisation to communication Fixed or rolling block |
| Local signalling | Red LED threshold reached Green flashing LED output signal |
| Number of Outputs | 1 alarm output 1 pulse |
| Buffer size | 16-bit 10 |
| [Ue] rated operational voltage | 90…347 V AC 50/60 Hz between phase and neutral UL 156…600 V AC 50/60 Hz between phases UL 90…300 V AC 50/60 Hz between phase and neutral CE 125…300 V DC |
| Power consumption in VA | 5 VA 347 V AC between phase and neutral) 5 VA 600 V AC between phases) |
| Power consumption in W | 3 W 300 V |
| Ride-through time | 100 ms 120 V AC |
| Mounting Mode | Clip-on By screws |
| Mounting Support | DIN rail |
| Standards | CSA C22.2 No 14-05 UL 508 IEC 61010-1 |
| Product certifications | CE conforming to IEC 61010 CULus conforming to UL 508 |
| Relative humidity | 0…95 % |
|---|---|
| Ambient air temperature for operation | -22…158 °F (-30…70 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Color | Dark grey |
| 9 mm pitches | 12 |
| Width | 4.21 in (107 mm) |
| Height | 3.58 in (91 mm) |
| Depth | 2.32 in (59 mm) |
| Category | US10PL109798 |
|---|---|
| Discount Schedule | 0PL1 |
| GTIN | 785901488514 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.58 in (9.1 cm) |
| Package 1 Width | 4.21 in (10.7 cm) |
| Package 1 Length | 2.32 in (5.9 cm) |
| Package 1 Weight | 8.00 lb(US) (3.629 kg) |
